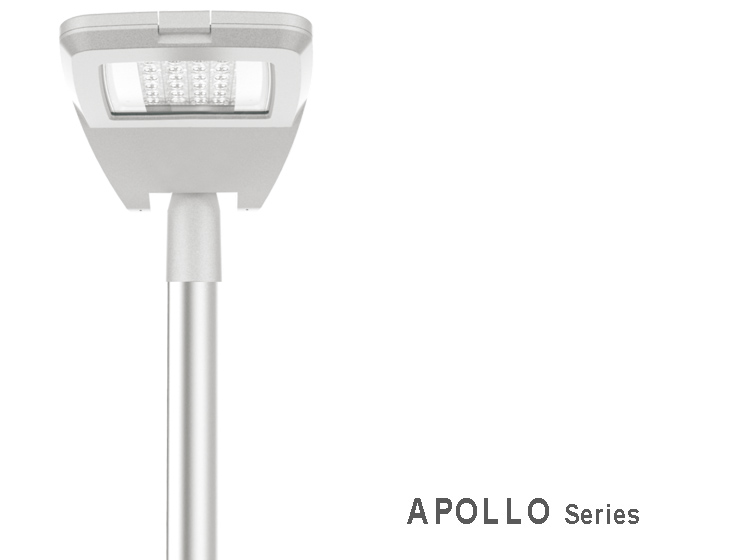

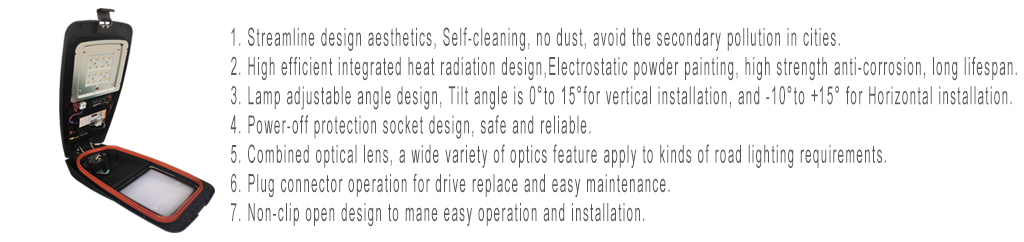

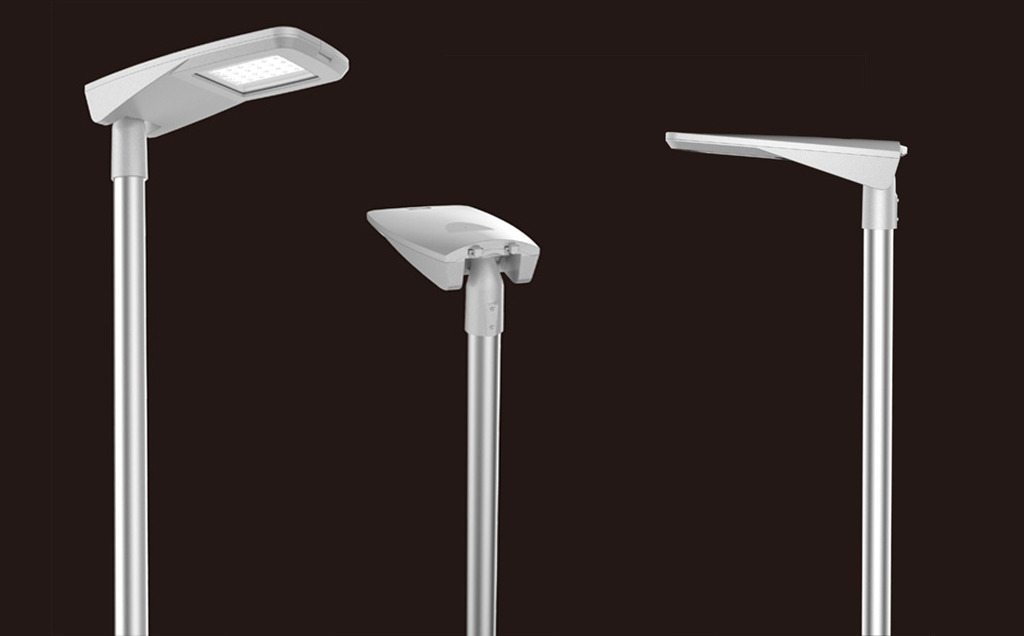

APOLLO series LED street light inheriting the streamline design aesthetic feeling. Simple and fashion design, high efficient and energy saving. Smooth self-cleaning type of roof design to avoid bird droppings and the second pollution in our city. IP66 protection with durable electrostatic spray which apply to harsh outdoor applications. Tool free for open, reasonable layout design brings simple maintenance.
Parameter:
|
Artical code
|
LED Quantities
|
Beam Angle
|
Power
|
Lumen Outpot
|
Input Voltage
|
Install Dia.
|
Control Method
|
|
L05B-008-P20
|
8pcs
|

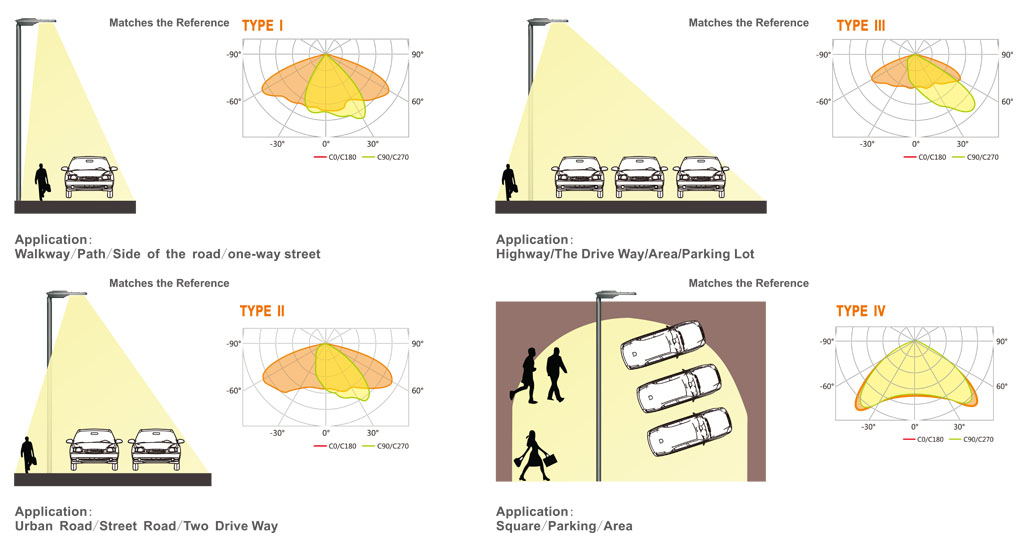

Type I（80x150°）/ Type II (60x155°) Type III ( 45x155°) / Type IV (90°) |
20W
|
2396lm
|
AC100-277V 50/60Hz
|
Ø60mm
|
On/Off
|
|
Artical code
|
LED Quantities
|
Beam Angle
|
Power
|
Lumen Outpot
|
Input Voltage
|
Install Dia.
|
Control Method
|
|
L05B-016-P30
|
16pcs
|
Type I（80x150°）/ Type II (60x155°) Type III ( 45x155°) / Type IV (90°) |
33W
|
3700lm
|
AC100-277V 50/60Hz
|
Ø60mm
|
On/Off
|
|
Artical code
|
LED Quantities
|
Beam Angle
|
Power
|
Lumen Outpot
|
Input Voltage
|
Install Dia.
|
Control Method
|
|
L05B-024-P40
|
24pcs
|
Type I（80x150°）/ Type II (60x155°) Type III ( 45x155°) / Type IV (90°) |
40W
|
4600lm
|
AC100-277V 50/60Hz
|
Ø60mm
|
On/Off
|
|
Artical code
|
LED Quantities
|
Beam Angle
|
Power
|
Lumen Outpot
|
Input Voltage
|
Install Dia.
|
Control Method
|
|
L05B-024-P60
|
24pcs
|
Type I（80x150°）/ Type II (60x155°) Type III ( 45x155°) / Type IV (90°) |
60W
|
6800lm
|
AC100-277V 50/60Hz
|
Ø60mm
|
On/Off
|
|
Artical code
|
LED Quantities
|
Beam Angle
|
Power
|
Lumen Outpot
|
Input Voltage
|
Install Dia.
|
Control Method
|
|
L05B-072-1.1P80
|
16pcs
|
Type I（80x150°）/ Type II (60x155°) Type III ( 45x155°) / Type IV (90°) |
80W
|
9200lm
|
AC100-277V 50/60Hz
|
Ø60mm
|
On/Off
|
