L05B-Bigger
Detail:

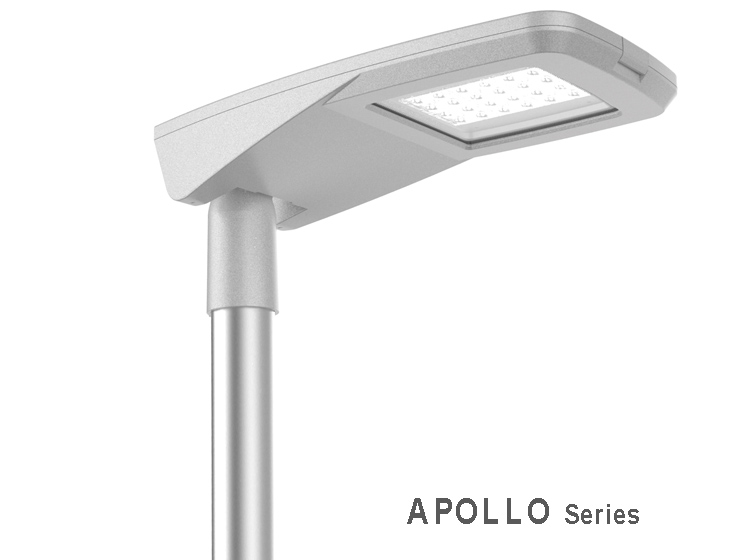

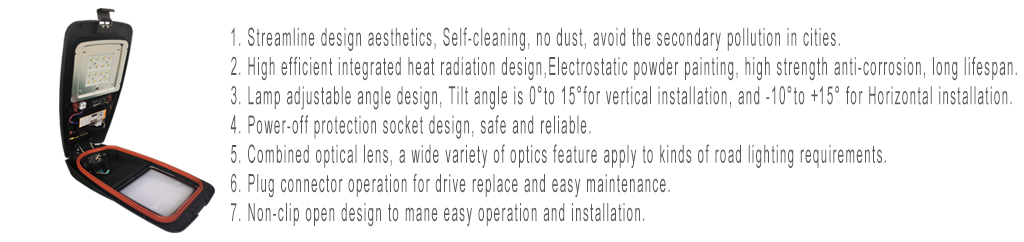

APOLLO series LED street light inheriting the streamline design aesthetic feeling. Simple and fashion design, high efficient and energy saving. Smooth self-cleaning type of roof design to avoid bird droppings and the second pollution in our city. IP66 protection with durable electrostatic spray which apply to harsh outdoor applications. Tool free for open, reasonable layout design brings simple maintenance.









Parameter:


Artical code
LED Quantities
Beam Angle
Power
Lumen Outpot
Input Voltage
Install Dia.
Control Method
L05B-036-P80
36pcs

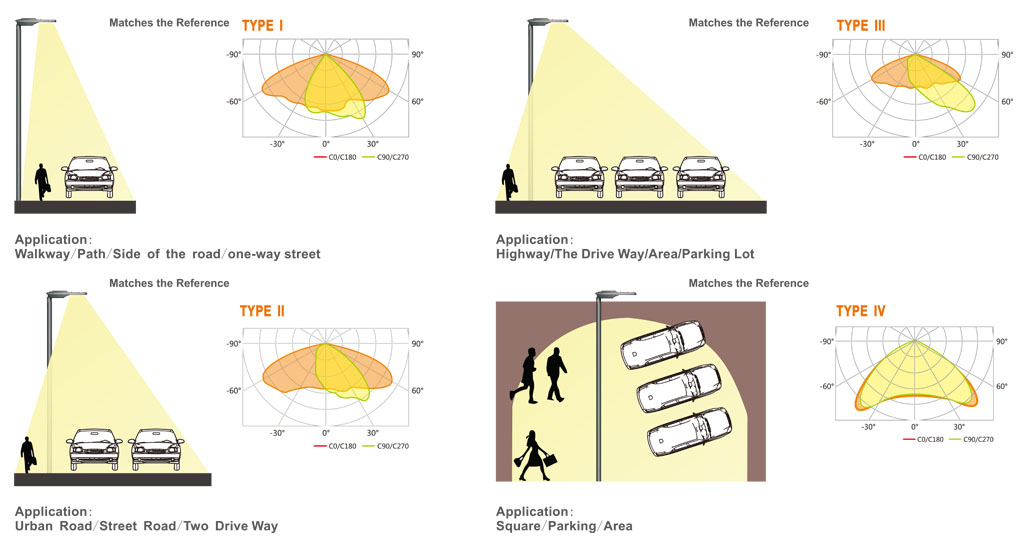

Type I(80x150°)/ Type II (60x155°)

Type III ( 45x155°) / Type IV (90°)

80W
9200lm
AC100-277V  50/60Hz
Ø60mm
On/Off


Artical code
LED Quantities
Beam Angle
Power
Lumen Outpot
Input Voltage
Install Dia.
Control Method
L05B-048-P100
48pcs

Type I(80x150°)/ Type II (60x155°)

Type III ( 45x155°) / Type IV (90°)

100W
11500lm
AC100-277V  50/60Hz
Ø60mm
On/Off

Artical code
LED Quantities
Beam Angle
Power
Lumen Outpot
Input Voltage
Install Dia.
Control Method
L05B-064-P120
64pcs

Type I(80x150°)/ Type II (60x155°)

Type III ( 45x155°) / Type IV (90°)

135W
14500lm
AC100-277V  50/60Hz
Ø60mm
On/Off

Artical code
LED Quantities
Beam Angle
Power
Lumen Outpot
Input Voltage
Install Dia.
Control Method
L05B-072-P160
72pcs

Type I(80x150°)/ Type II (60x155°)

Type III ( 45x155°) / Type IV (90°)

157W
18500lm
AC100-277V  50/60Hz
Ø60mm
On/Off
