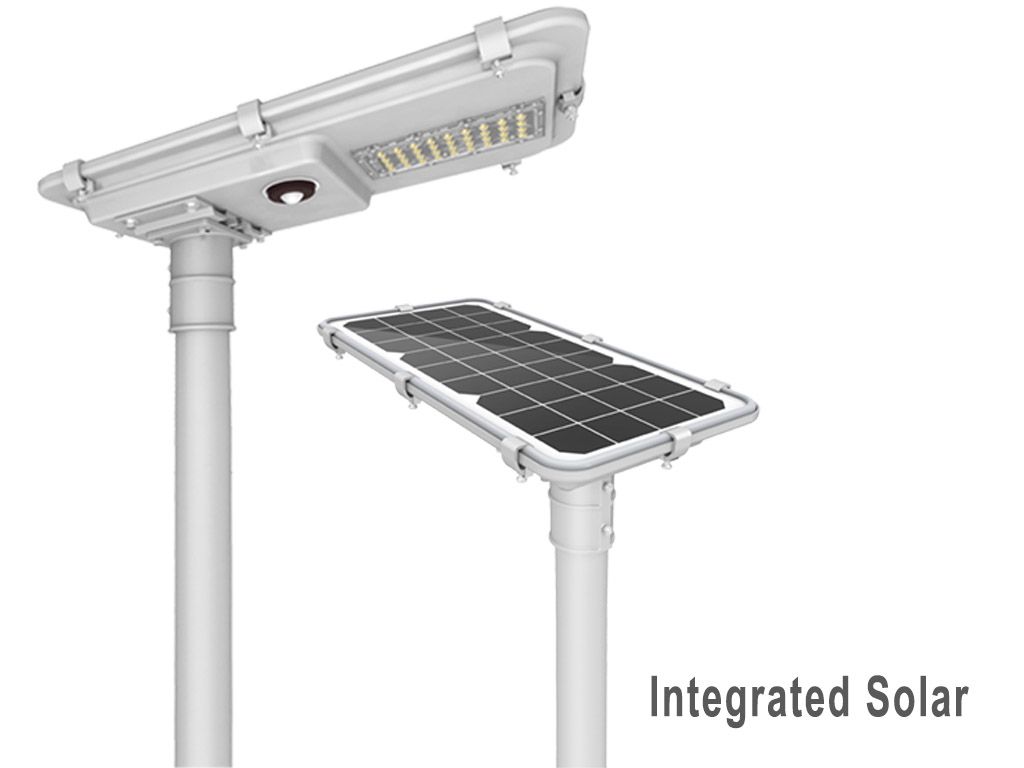

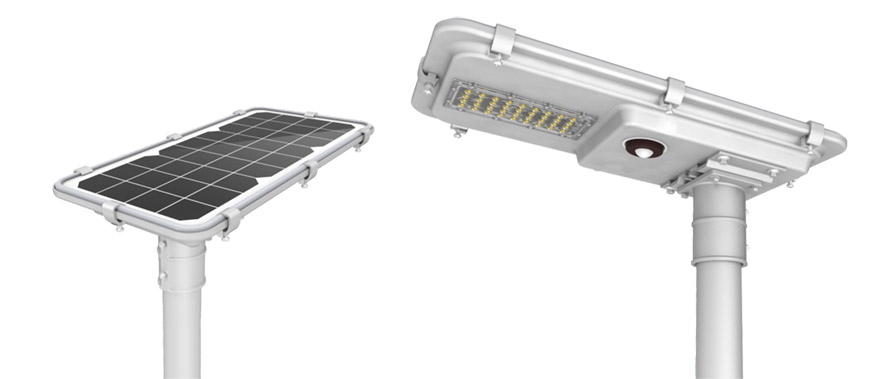

Intergrated Solar
Detail:


1. Integrated design, convenient installation,components are easy to change, cost savings. Small volume, easy to

   transport.

2. PIR motion infra-red sensors and intelligent controller,to ensure the effect of the lamps and lantes lighting ability.

3. Professional heat dissipation design; Professional waterproof design, protection grade IP66.

4. Using special joint, with the meter and the wrong, and other functions.

5. USES of rotating lamp arm to multi-angle adjustment, it is suitable for different latitude regions and different forms of

   light pole installation requirements.

6. Wind loading: 65 m/SEC.














Parameter:



Product Code
WHL-SO-A1
Total Luminous Flux
1273LM (Equal to 15-20W similar competing goods)
Colour Temperature  CCT
4500-5000K (Can as Customer)
 Color Rendering Index
> 70
Solar Panel
17.5W Monocrystalline Silicon
Solar Panel Conversion Rate
17%
Battery
9.6AH Lithium-ion Li Fepo4 batteries
Working Time
Meet the 7-8hours a day of effective charges, Working Full power12 hours, Intelligent mode 4-5 days
Lighting Efficience
160LM/W

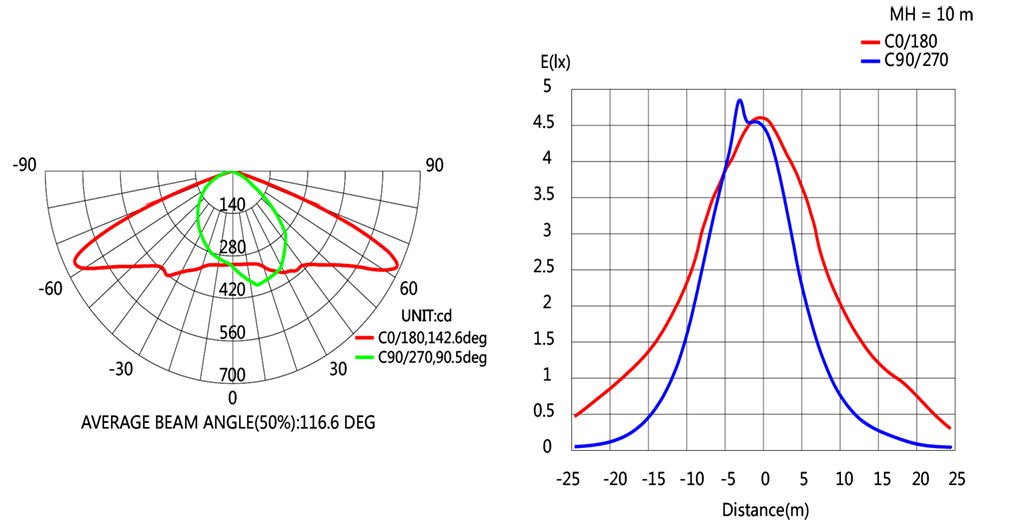

Beam Of Angle
150°x70°
Protection Grade
IP66
Temp.of Working Condition
-35° ~ 50°
Humidity of Working Condition
10% ~ 90%
Light Lifetime
> 50,000H
Warranty
3 years
Installation Height
3-4Meters

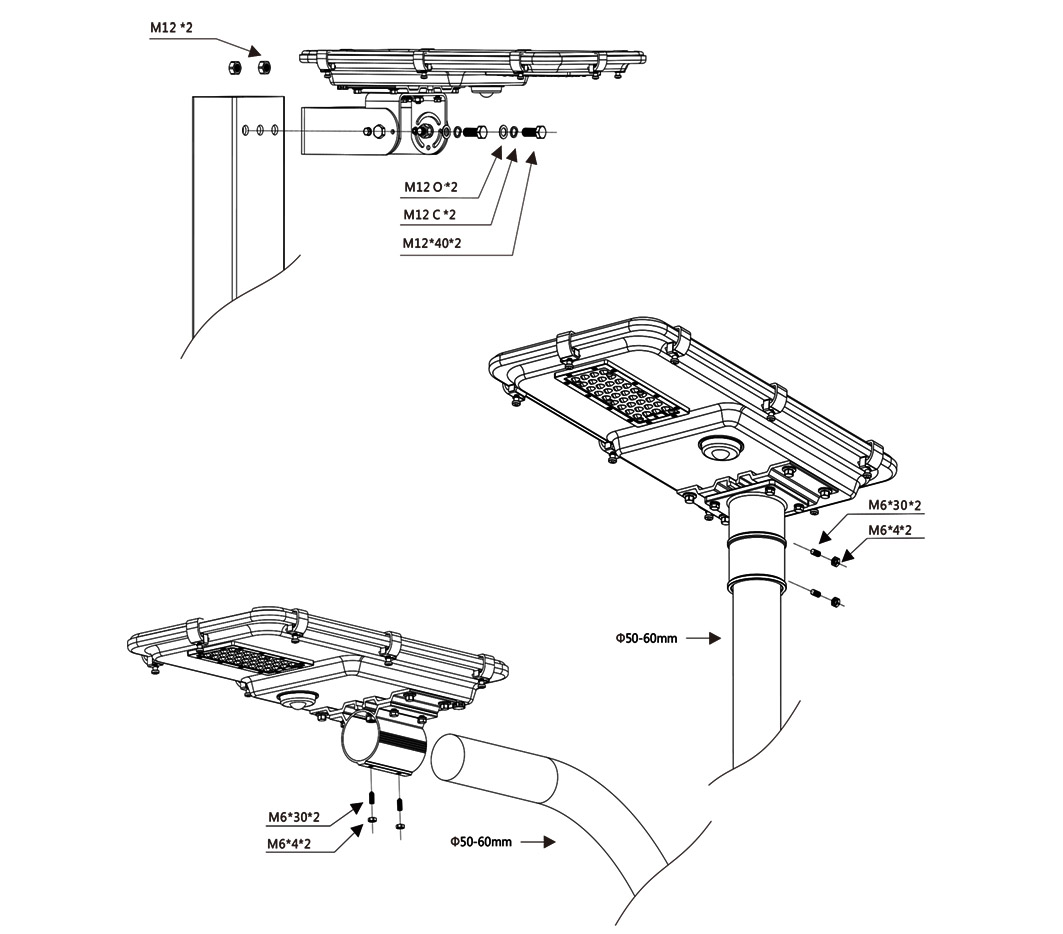

Pole Diameter
Φ50mm-Φ60mm

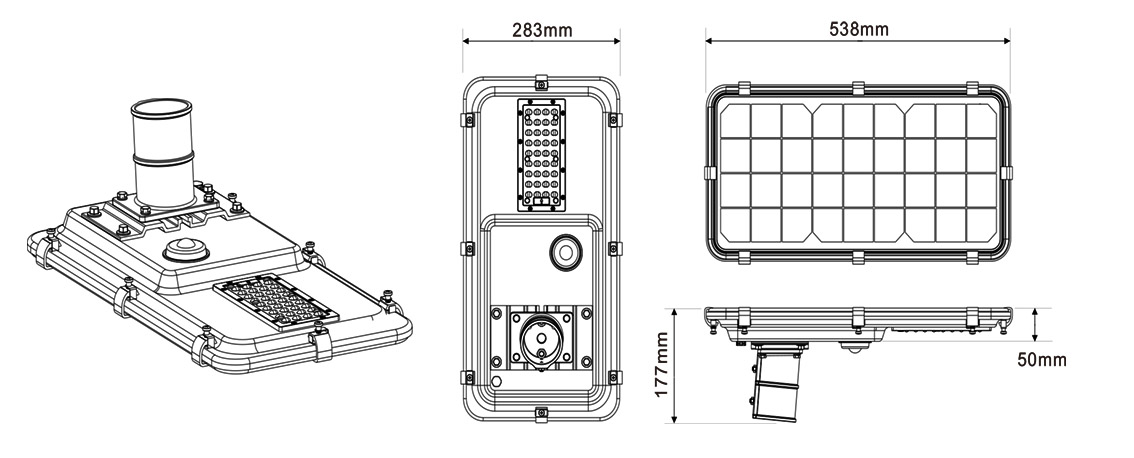

Fixture Size
L 538mm * W 283mm * H 50mm
Lamp Weight
5

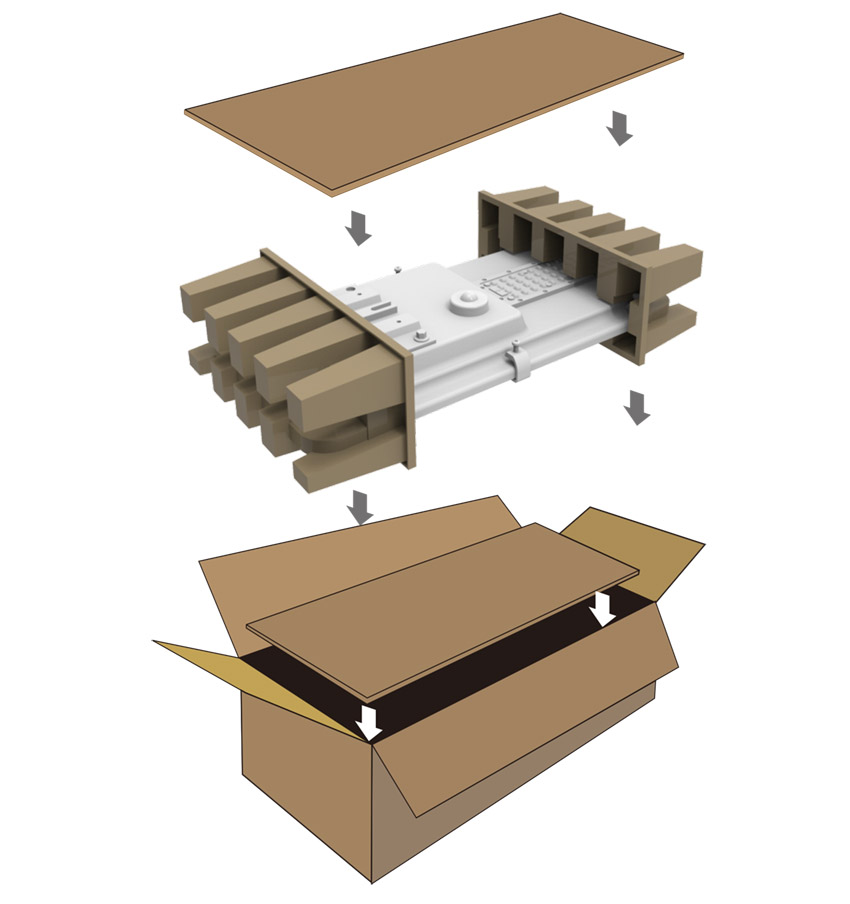

Lamp Box

Length
Width
Height
Net Weight (kg)
Gross Weight(kg)
Box
590mm
345mm
140mm
5.00
7.00
1pc

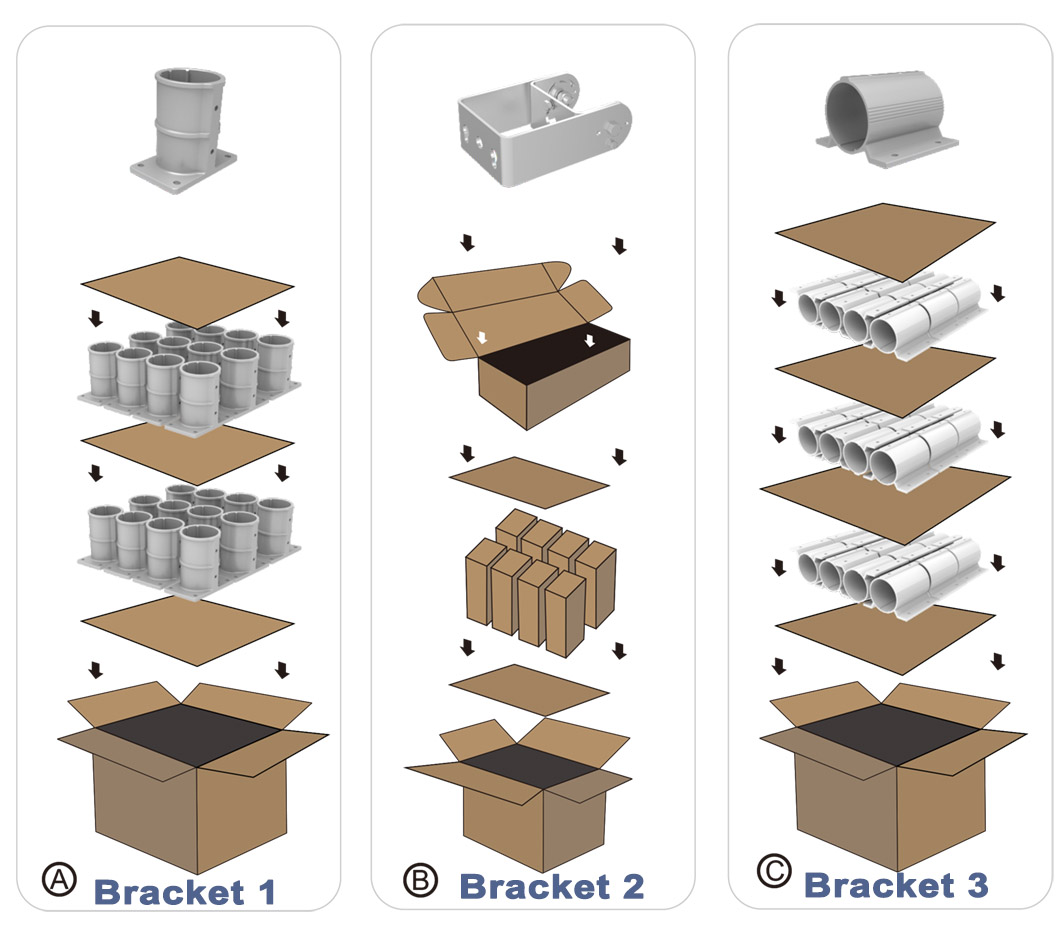

Bracket Packing
Length
Width
Height
Quantity              (each Carton)
N.W (kg)
G.W (kg)
Out Box
375mm
345mm
260mm
24


Each support independent coated bag packaging protection, to prevent scratches.
Out Box
375mm
215mm
390mm
8


Inner Box
198mm
83mm
86mm
1


Out Box
335mm
315mm
260mm
36


Each support independent coated bag packaging protection, to prevent scratches.
