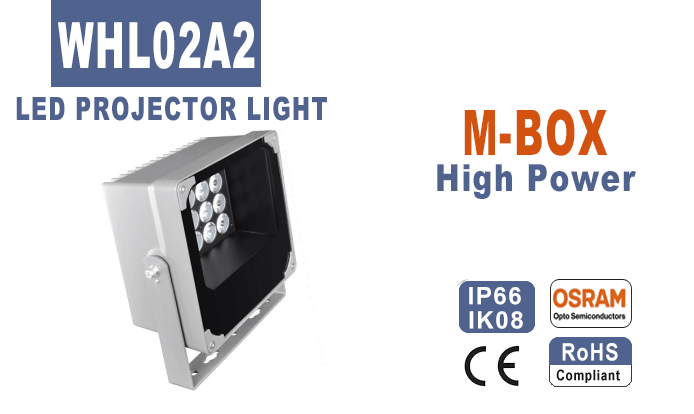

WHL02A2 Series
Detail:


Application: Commercial building, bridge, historic building or special facade etc

1. Die-casting Aluminum tech combines with pure Aluminum heat dissipation tech which minimize lamp size and Increase power, maximum 80W
2. Lamp with smooth surface design and heat sinker with dust free design provide favorable appearance.
3. 3.5 degree narrow light distribution available, max shooting range 200M with center luminance 40LX.
4. Air breathe device balances inside and outside air pressure
5. Wide range input voltage and high grade surge protect ability offers excellent power system adaptability
6. A variety of applications, can be cast light, according to the tree, lifting or wall mounted

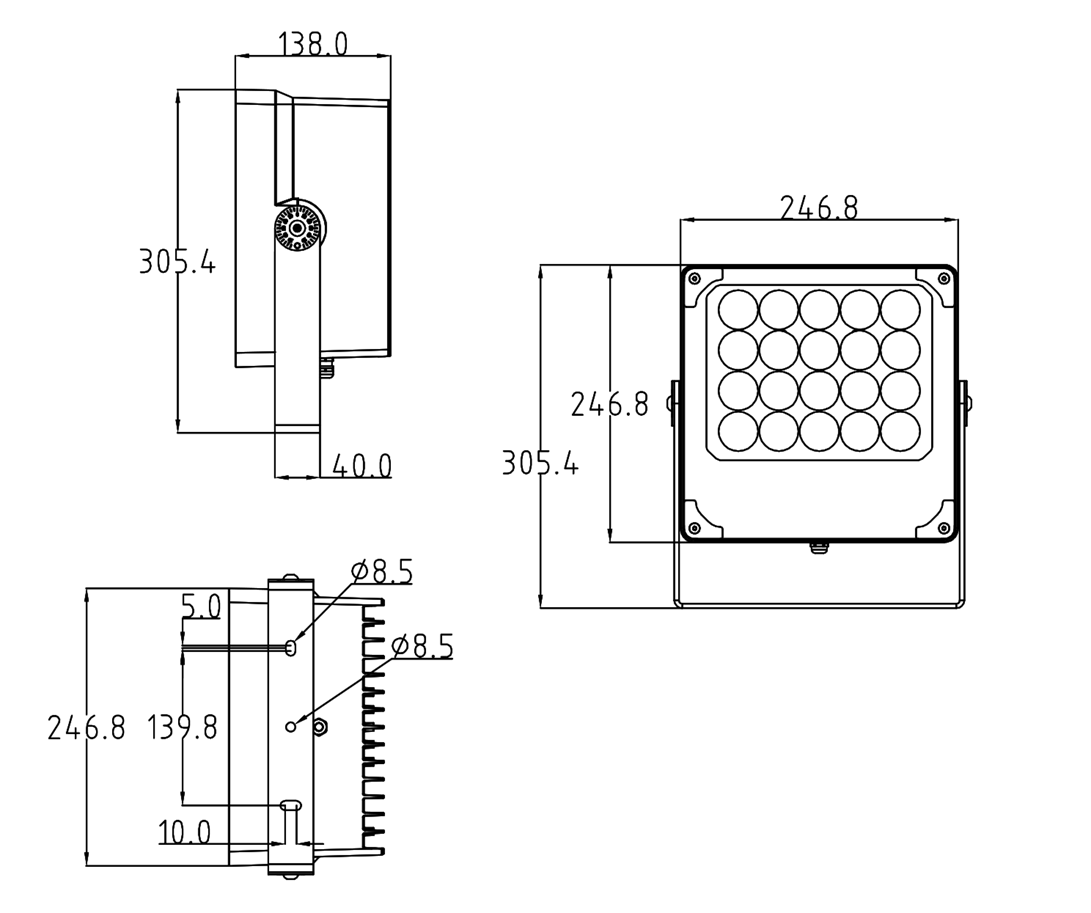

Lamp Structure

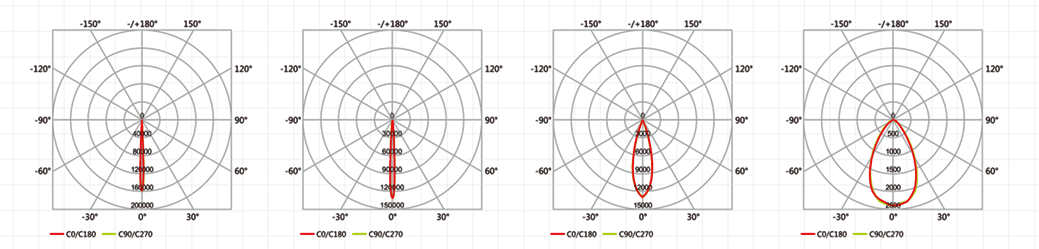

Light Distribution Curve


Specification

Product Code
WHL02A2-020-D3
WHL02A2-020-D5
WHL02A2-024
WHL02A2-036
LED Quantity
20 pcs
20 pcs
24 pcs
36 pcs
Rated Power
45W
65W
55W
80W
Luminous Flux
3825 lm
5265 lm
4780 lm
6390 lm
Optical Angle
3.5°
8° /25°/40°  / 60°
Color Temperature
3000K/4000K/5500K/RGB
Working Temperature
-3550
Input Voltage
DC 24V/AC 100-277V
IP Rating
IP66
Net Weight
5.8 kg
5.8 kg
5.8 kg
5.8 kg
Gross Weight
6.3 kg
6.3 kg
6.3 kg
6.3 kg
Product Size
L247*W247*H307*T138mm
Packing Size
37*33*20cm (1pcs/box)
