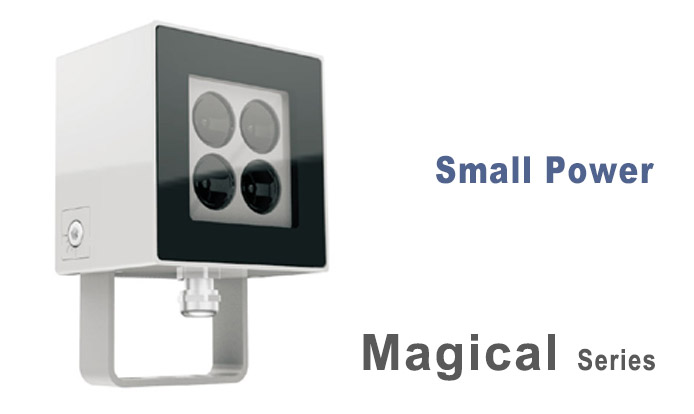

Projector Lights Magical Real-series LED Projector lights, 3W, 6W, 8W, 10W
Magical Real Series LED Projector Lights have the super mode perfect design, high performance, simple fashion, high efficiency and energy saving. Adopt high strength anti-corrosion die-casting aluminum lamp body, surface ball blasting treatment and electrostatic powder painting; Adopts the design of optical lens and reflector to implement integration of small Angle beam, and to avoid glare phenomena, the largest up to 80 meters; It is set a number of innovative design in one, is a fusion of mode urban aesthetic feeling, is the ideal choice for outdoor building and landscape lighting.
1. Reinforced die-casting body and reflector, smooth self-cleaning surface, nice appearance designAnd
strong structure design.
2. High efficient integrated heat radiation design, Electrostatic powder painting, high strength anti-
corrosion, long lifespan.
3. Plug type waterproof design, Waterproof more durable and effectively, Up to IP66.

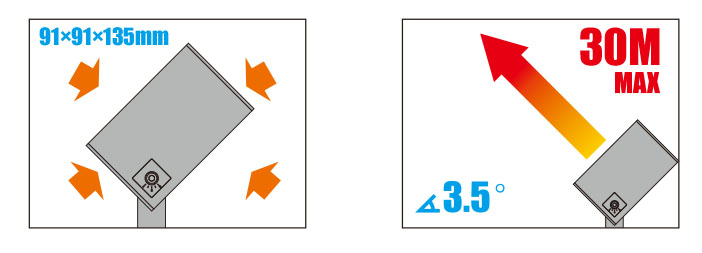

4. 3.5° Optical narrow angle design, Max.30meters with center luminance 15lux.
5. Power supply and signal terminal surge protection and power supply high voltage, wide voltage input
design up to 305 v, can adapt to the harsh power supply environment.

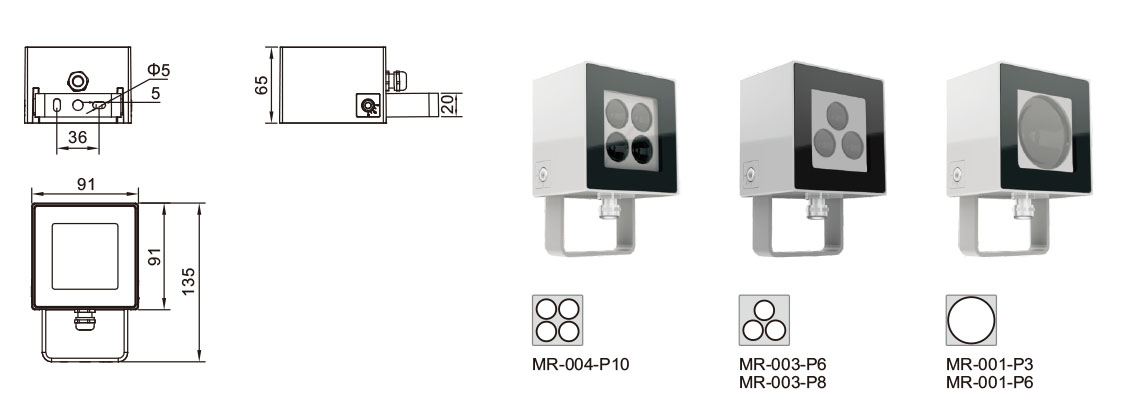

Parameter:
|

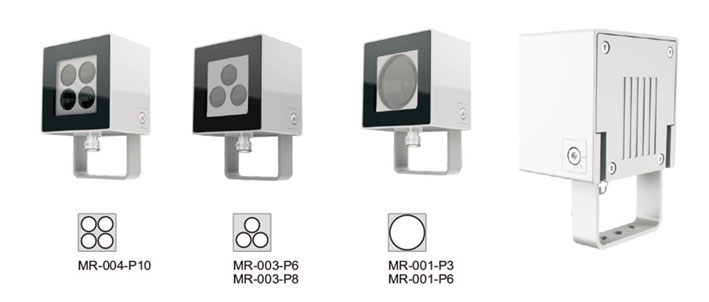

Artical code
|
LED Quantities
|
Beam Angle
|
Power
|
CCT
|
Input Voltage
|
Installation
|
IP Grade
|
Control Method
|
|
MR-001-P3
|
1pc
|
3.5° |
3W
|
Single
|
AC100-277V/DC24V
|
Bracke
|
IP66
|
Constant Currect
|
|
Artical code
|
LED Quantities
|
Beam Angle
|
Power
|
CCT
|
Input Voltage
|
Installation
|
IP Grade
|
Control Method
|
|
MR-001-P6
|
1pc
|
7°/ 15° / 25° / 40° / 60° |
6W
|
Single
|
AC100-277V/DC24V
|
Bracket
|
IP66
|
Constant Currect
|
|
Artical code
|
LED Quantities
|
Beam Angle
|
Power
|
CCT
|
Input Voltage
|
Installation
|
IP Grade
|
Control Method
|
|
MR-003-P6
|
3pcs
|
7°/ 15° / 25° / 40° / 60° |
6W
|
Single
|
AC100-277V/DC24V
|
Bracket
|
IP66
|
Constant Currect
|
|
Artical code
|
LED Quantities
|
Beam Angle
|
Power
|
CCT
|
Input Voltage
|
Installation
|
IP Grade
|
Control Method
|
|
MR-003-P8
|
3pcs
|
7°/ 15° / 25° / 40° / 60° |
8W
|
Single
|
AC100-277V/DC24V
|
Bracket
|
IP66
|
Constant Currect
|
|
Artical code
|
LED Quantities
|
Beam Angle
|
Power
|
CCT
|
Input Voltage
|
Installation
|
IP Grade
|
Control Method
|
|
MR-004-P10
|
4pcs
|
7°/ 15° / 25° / 40° / 60° |
10W
|
Single
|
AC100-277V/DC24V
|
Bracket
|
IP66
|
Constant Currect
|
