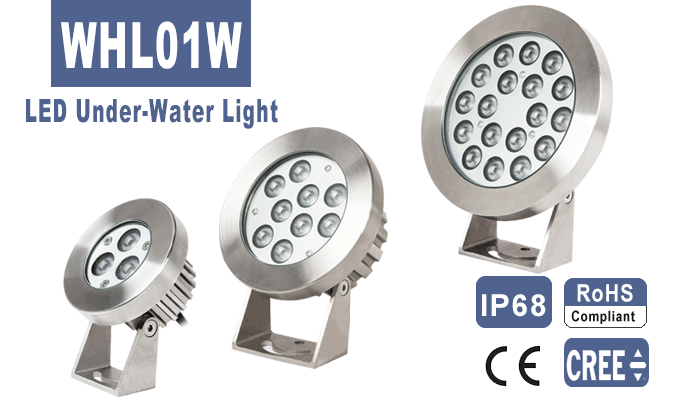

WHL01W Series
Detail:
Application

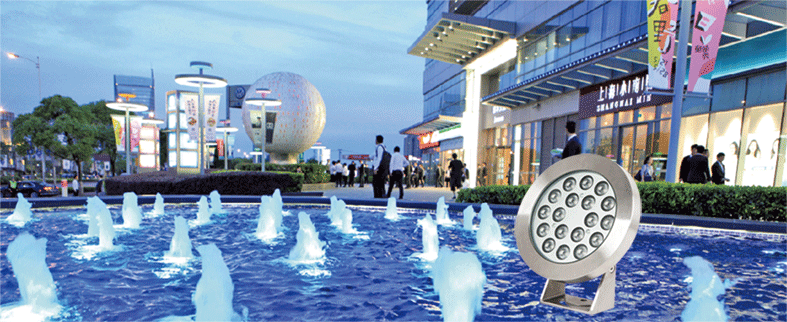

Suit for swimming pool, fountain,aquarium and other places for underwater lighting.
Innovation

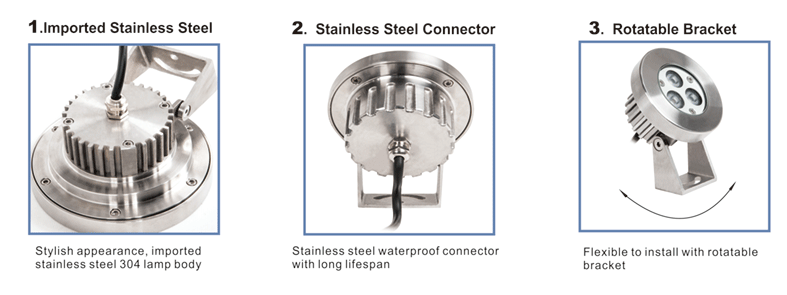

Lamp Structure

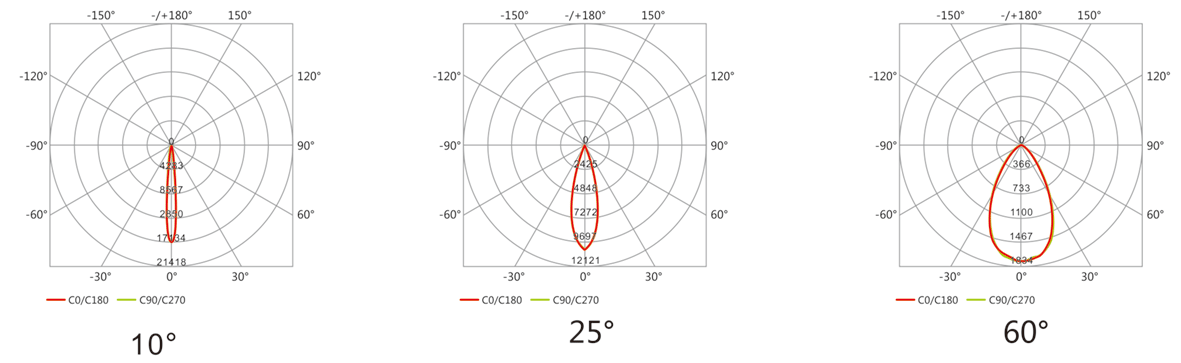

Light Distribution Curve
Specification
|
Products Code
|
WHL01W-003
|
WHL01W-009
|
WHL01W-018
|
|
LED Quantity
|
3
pcs
|
9
pcs
|
018
pcs
|
|
Rated Power
|
3
W
|
9
W
|
18
W
|
|
LED Source
|
CREE
|
||
|
Input Voltage
|
DC24V
|
||
|
Colour Temperature(Kelvin)
|
5500K/4000K/3000K/RGB
|
||
|
CRI
|
>75
|
||
|
Control Mode
|
Constant
current
|
||
|
Lamp Luminous Flus(Lm)
|
282lm(white)
|
796lm(White)
|
1598lm(White)
|
|
Beam of Angle
|
10°/ 25° / 60°
|
||
|
Temp.of Working Condition
|
-35℃ to 50℃
|
||
|
Hud. Of Working Condition
|
10%
to 90%
|
||
|
Lifetime
|
>70
000 Hours
|
||
|
IP Rating
|
IP68
|
||
|

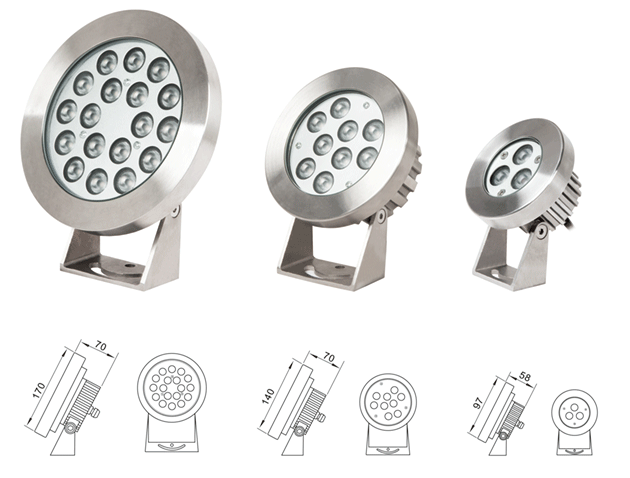

Fixture Size
|
Φ97xW58mm
|
Φ140xW70mm
|
Φ170xW70mm
|
|
Lamp Weight (Kgs)
|
1.2
|
1.5
|
2.2
|
|
Carton Packing Size
|
12
x 9 x 18 cm
|
18
x 12 x 26 cm
|
23
x 12 x 30 cm
|
|
Gross Weight (Kgs)
|
1.5
|
1.8
|
2.8
|
|
Certificate
|
CE/Rohs
|
||
