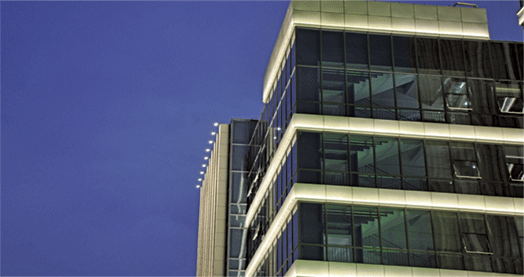

Application: Commercial building, bridge, historic building or special facade etc
1. Die-casting Aluminum tech combines with pure Aluminum heat dissipation tech which minimize lamp size and Increase power, maximum 40W
2. Lamp with smooth surface design and heat sinker with dust free design provide favorable appearance.
3. 3.5 degree narrow light distribution available, max shooting range 80m with center luminance 40LX.
4. Air breathe device balances inside and outside air pressure
5. Wide range input voltage and high grade surge protect ability offers excellent power system adaptability
6. A variety of applications, can be cast light, according to the tree, lifting or wall mounted

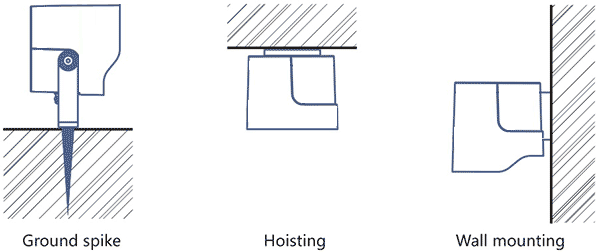

Installation
Lamp Structure

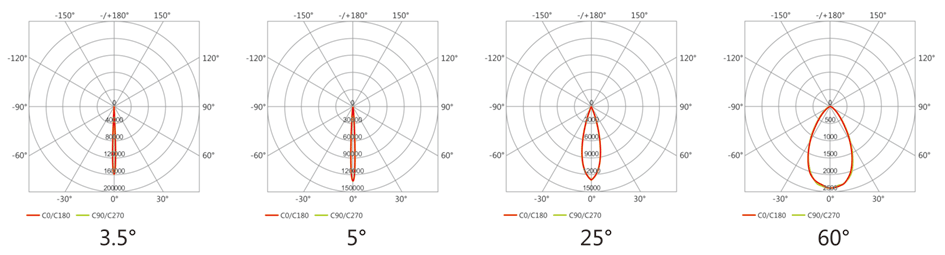

Light Distribution Curve
Specification
|
Products
code
|
WHL02A1-002
|
WHL02A1-003
|
WHL02A1-004
|
WHL02A1-006
|
WHL02A1-009
|
|
Rated Power
|
5 W
|
3 W
|
10 W
|
6 W
|
9 W
|
|
Beam Angle
|
3.5°
|
25°/60°
|
3.5°
|
25°/60°
|
25°/60°
|
|

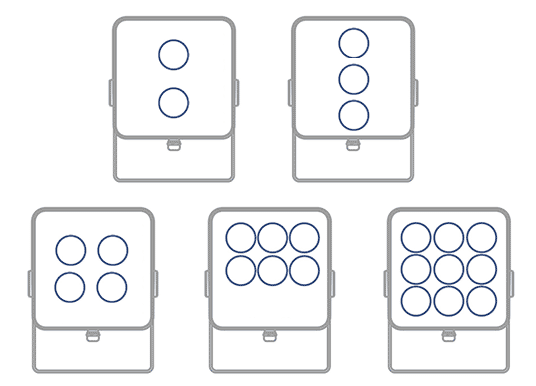

LED Quantity
|
2pcs
|
3pcs
|
4pcs
|
6pcs
|
9pcs
|
|
Temperature Color
|
Single color
(3000K/4000K/5500K/R/G/B)
|
||||
|
Luminuous Flux
|
≥320Lm
|
≥665Lm
|
≥201Lm
|
≥415Lm
|
≥627Lm
|
|
Color Index
|
＞70
|
||||
|
Input Voltage
|
DC24V/100-277VAC
|
||||
|
Frequency Range
|
50/60Hz
|
||||
|
Power Efficiency
|
＞0.9
|
||||
|
Lifetime
|
>50 000 Hours
|
||||
|
Fixture Material
|
Aluminum
|
||||
|
IP Rating
|
IP66
|
||||
|
IK Rating
|
IK08
|
||||
|
Working Temperature
|
-35℃ - +50℃
|
||||
|
Working Humidity
|
10%-90%
|
||||
|
Storage Temperature
|
-35℃ - +50℃
|
||||
|

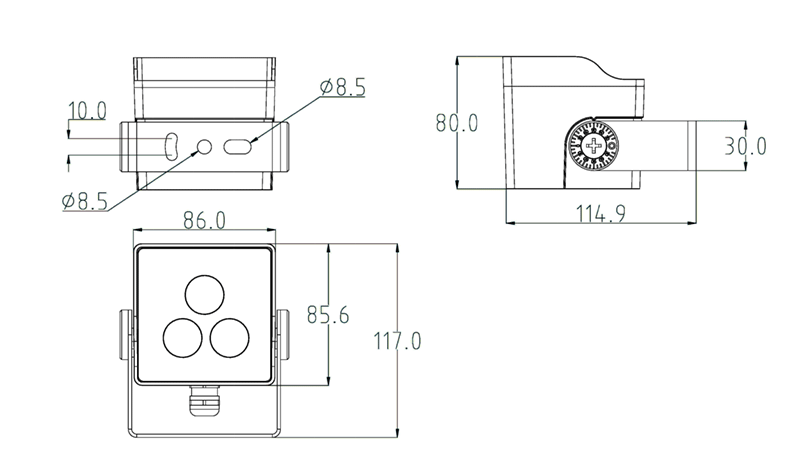

Product Size
|
86*86*117mm
|
86*86*117mm
|
86*86*117mm
|
86*86*117mm
|
86*86*117mm
|
|
Net
Weight
|
0.85kg
|
0.85kg
|
0.85kg
|
0.85kg
|
0.85kg
|
|
Package Size
|
39*31*20cm
|
39*31*20cm
|
39*31*20cm
|
39*31*20cm
|
39*31*20cm
|
