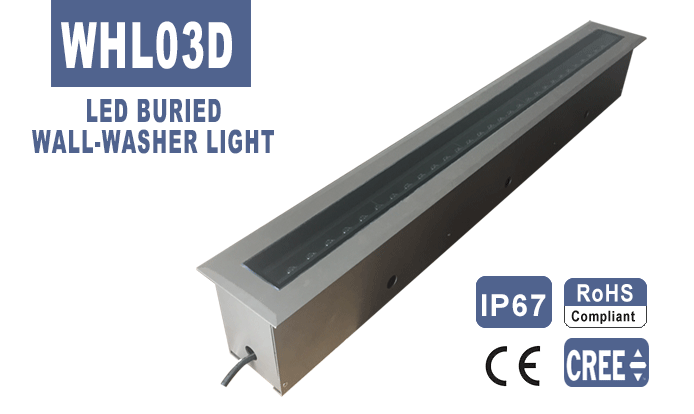

WHL03D Series
Detail:
1, Simple figure, no glare.
2, special light distribution design, high utilization.
3, Aluminum Alloy body, Toughened Glass cover,Surface static electricity spraying.
4, IP67 Protective level.
5, High grey level technology, uniform light beam,delicate testure.

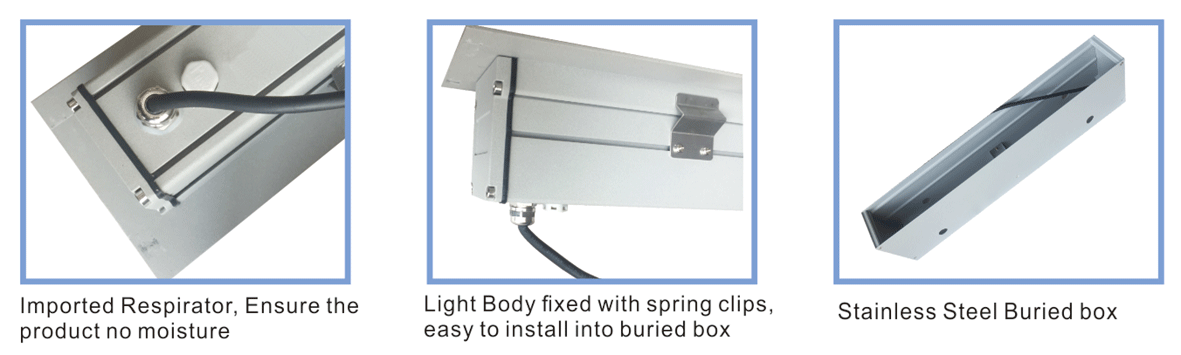

Innovation

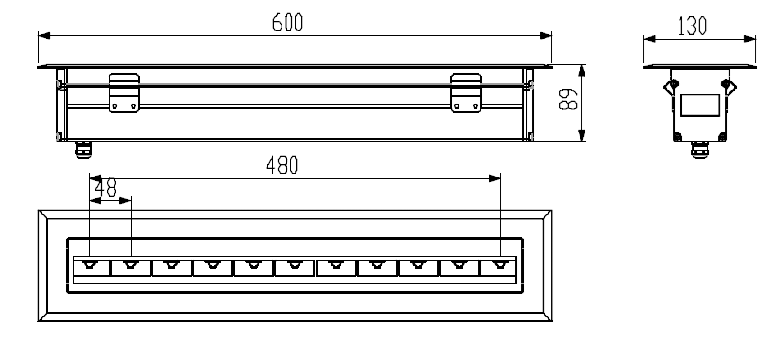

Lamp Structure
Length: 600mm

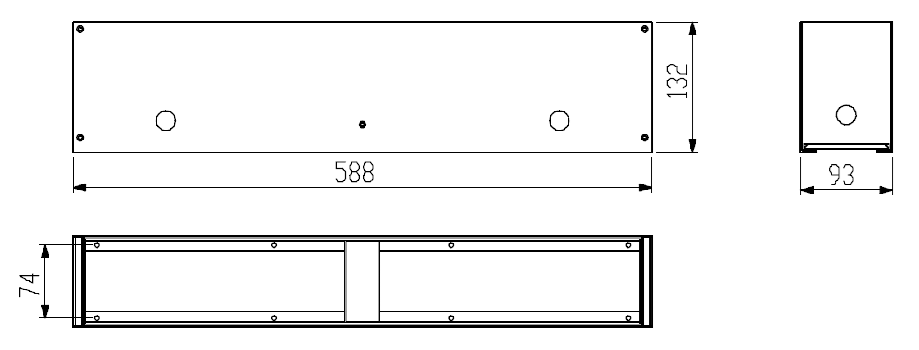

Buried Box Size

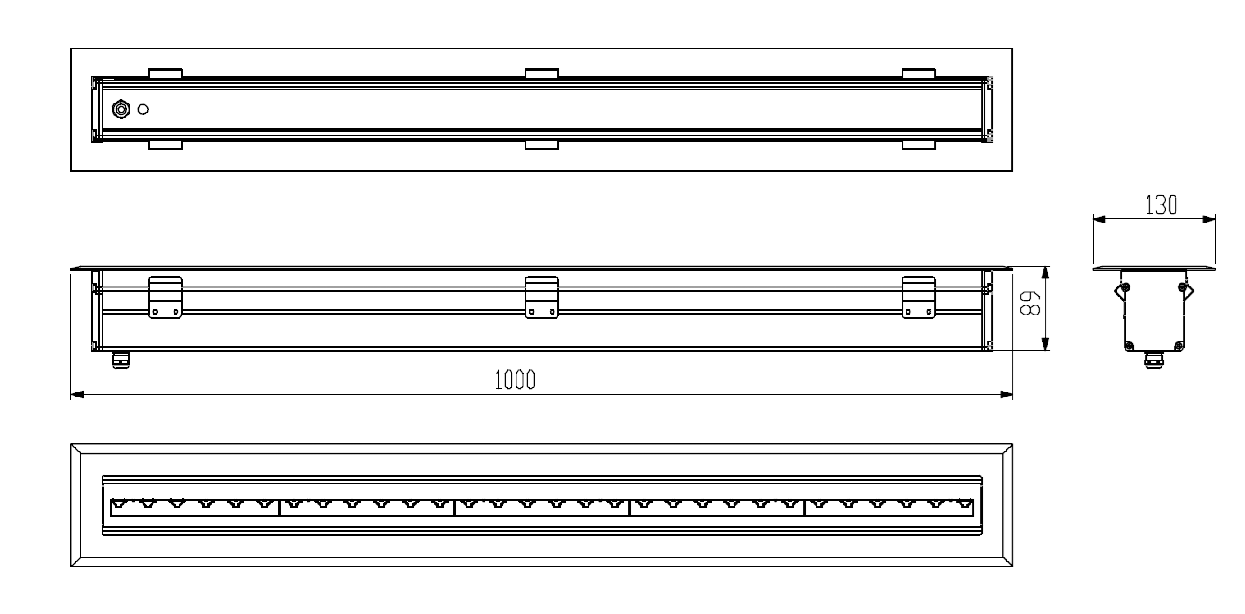

Length: 1000mm

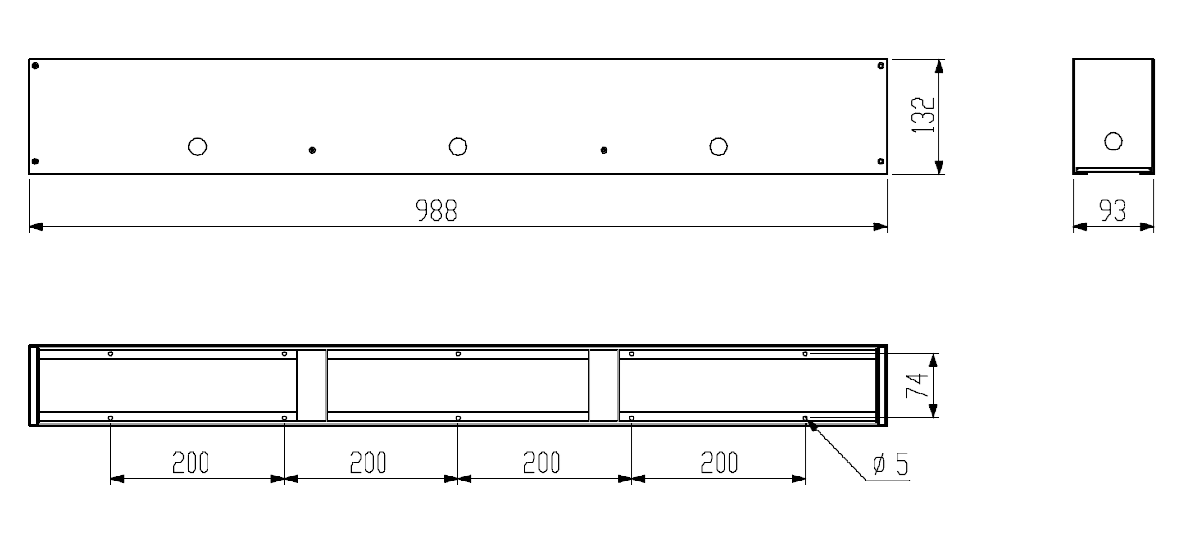

Buried Box Size

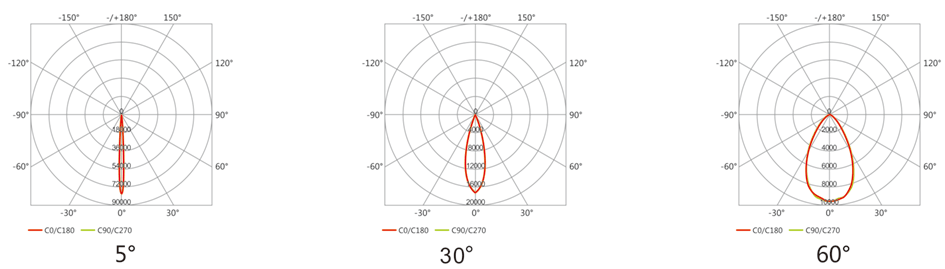

Light Distribution Curve
Specification:
|
Products Code
|
WHL03D-011-P12
|
WHL03D-012-P14
|
WHL03D-018-P20
|
WHL03D-024-P26
|
WHL03D-030-P32
|
|
LED
Quantity
|
11 pcs
|
12 pcs
|
18 pcs
|
24 pcs
|
32 pcs
|
|
Fixture Size
|
L600
x W130 x H89mm
|
L1000
x W130 x H89mm
|
L1000
x W130 x H89mm
|
L1000
x W130 x H89mm
|
L1000
x W130 x H89mm
|
|
LED Source
|
CREE
|
CREE
|
CREE
|
CREE
|
CREE
|
|
Rated Power
|
12
W
|
14
W
|
20
W
|
24
W
|
32
W
|
|
Input Voltage
|
AC100-240V
|
||||
|
Colour Temperature(Kelvin)
|
5500K/4000K/3000K /R/G/B/RGB
|
||||
|
Control
Mode
|
Constant current/DMX512
|
||||
|
Frequency
Range
|
50-60Hz
|
||||
|
Lamp Luminous Flux
|
1025lm(white)
|
1156lm(White)
|
1712lm(white)
|
2276lm(White)
|
2865lm(White)
|
|
Beam of Angle
|
5°/
15°/30°/60°/90°/120°/6*30°
|
||||
|
Temp.of Working Condition
|
-35℃ to 50℃
|
-35℃ to 50℃
|
-35℃ to 50℃
|
-35℃ to 50℃
|
-35℃ to 50℃
|
|
Hud. Of Working Condition
|
10%
to 90%
|
10%
to 90%
|
10%
to 90%
|
10%
to 90%
|
10%
to 90%
|
|
Lifetime
|
>70 000 Hours
|
>70
000 Hours
|
>70
000 Hours
|
>70
000 Hours
|
>70
000 Hours
|
|
Warranty
|
3years
|
3years
|
3years
|
3years
|
3years
|
|
Protection Grade
|
IP67
|
IP67
|
IP67
|
IP67
|
IP67
|
|
Lamp Weight (Kgs)
|
4.2
|
7.6
|
7.6
|
7.6
|
8
|
|
Carton Packing Size
|
14x
17x62 cm
|
14
x 17 x 103 cm
|
14
x 17 x 103 cm
|
14
x 17 x 103 cm
|
14
x 17 x 103 cm
|
|
Gross Weight (Kgs)
|
5
|
9
|
9
|
9
|
9.5
|
|
Certificate
|
CE,Rohs
|
CE,Rohs
|
CE,Rohs
|
CE,Rohs
|
CE,Rohs
|
