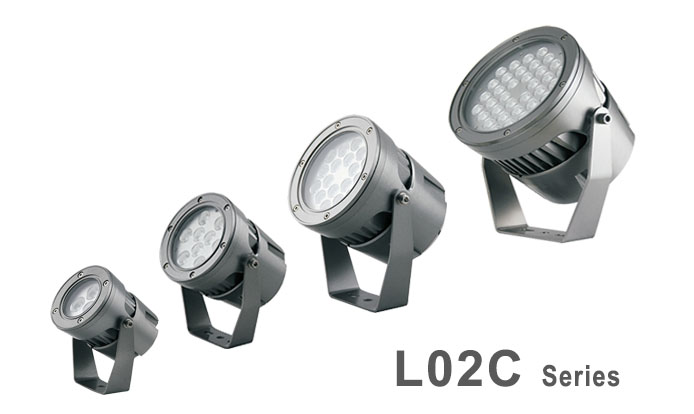

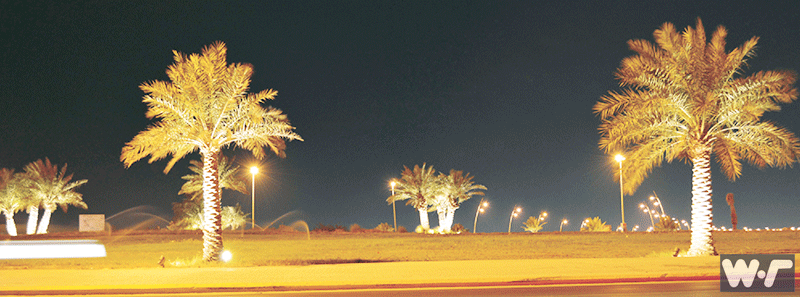

1. Be applied to outside building,bridge and ancient architecture for flood lighting.
2. Adopt isolated two bodies design could have the separate heat dissipation fully,
ensure the stability and long lifespan of LED light.
3. Adopt American CREE original LED source, high flus output,excellent consistency of light color.
4. Body surface of powder coation processed basing on the color of building background.
5. RGB color adopt constant current driver with PWM gray control installed inside, powerful DMX512 interface adopts
high reliable bus connect,all has the function of automatic addressing.
6. IP66 waterproof, adopt difference angle second optical Lens to reach project requsted.
Parameter:

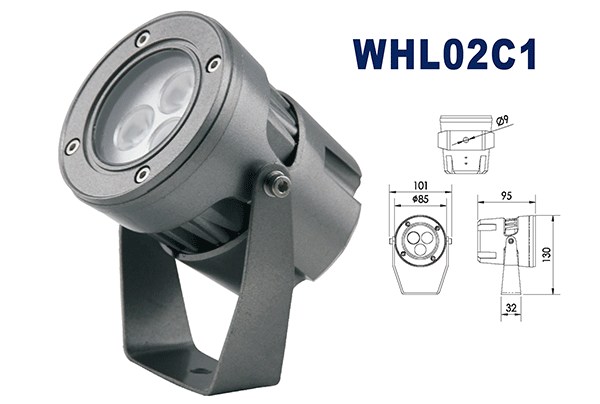

WHL02C1
|
Artical code
|
LED Quantities
|
Beam Angle
|
Power
|
CCT
|
Input Voltage
|
Installation
|
IP Grade
|
Control Method
|
|
L02C1-003-P6
|
3pcs
|
5°/12.5°/20°/30°/60°/15x30°/10x60° |
6W
|
Single
|
AC100-277V/DC24V
|
Bracke
|
IP66
|
Constant Currect
|
|
Artical code
|
LED Quantities
|
Beam Angle
|
Power
|
CCT
|
Input Voltage
|
Installation
|
IP Grade
|
Control Method
|
|
L02C1-003-P8
|
3pcs
|
5°/12.5°/20°/30°/60°/15x30°/10x60° |
8W
|
Single
|
AC100-277V/DC24V
|
Bracket
|
IP66
|
Constant Currect
|
|
Artical code
|
LED Quantities
|
Beam Angle
|
Power
|
CCT
|
Input Voltage
|
Installation
|
IP Grade
|
Control Method
|
|

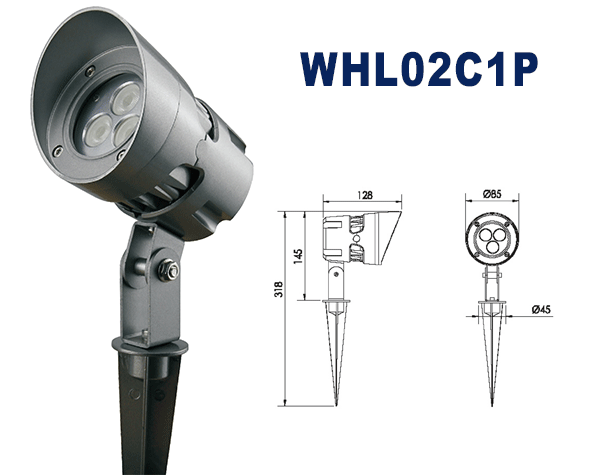

L02C1P-003-P6
|
3pcs
|
5°/12.5°/20°/30°/60°/15x30°/10x60° |
6W
|
Single
|
AC100-277V/DC24V
|
Ground Pin
|
IP66
|
Constant Currect
|
|
Artical code
|
LED Quantities
|
Beam Angle
|
Power
|
CCT
|
Input Voltage
|
Installation
|
IP Grade
|
Control Method
|
|
L02C1P-003-P8
|
3pcs
|
5°/12.5°/20°/30°/60°/15x30°/10x60° |
8W
|
Single
|
AC100-277V/DC24V
|
Ground Pin
|
IP66
|
Constant Currect
|

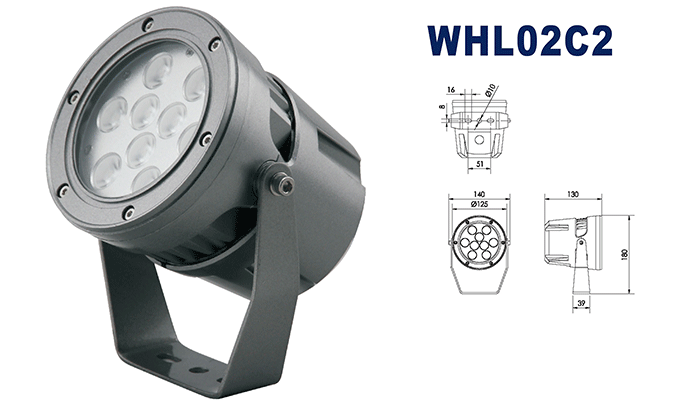

WHL02C2
|
Artical code
|
LED Quantities
|
Beam Angle
|
Power
|
CCT
|
Input Voltage
|
Installation
|
IP Grade
|
Control Method
|
|
L02C2-009-P11
|
9pcs
|
5°/12.5°/20°/30°/60°/15x30°/10x60° |
11W
|
Single
|
AC100-277V/DC24V
|
Bracke
|
IP66
|
Constant Currect
|
|
Artical code
|
LED Quantities
|
Beam Angle
|
Power
|
CCT
|
Input Voltage
|
Installation
|
IP Grade
|
Control Method
|
|
L02C2-009-P20
|
9pcs
|
5°/12.5°/20°/30°/60°/15x30°/10x60° |
20W
|
Single
|
AC100-277V/DC24V
|
Bracket
|
IP66
|
Constant Currect
|
|
Artical code
|
LED Quantities
|
Beam Angle
|
Power
|
CCT
|
Input Voltage
|
Installation
|
IP Grade
|
Control Method
|
|
L02C2P-009-P11
|
9pcs
|
5°/12.5°/20°/30°/60°/15x30°/10x60° |
11W
|
Single
|
AC100-277V/DC24V
|
Ground Pin
|
IP66
|
Constant Currect
|
|
Artical code
|
LED Quantities
|
Beam Angle
|
Power
|
CCT
|
Input Voltage
|
Installation
|
IP Grade
|
Control Method
|
|
L02C2P-009-P20
|
9pcs
|
5°/12.5°/20°/30°/60°/15x30°/10x60° |
20W
|
Single
|
AC100-277V/DC24V
|
Ground Pin
|
IP66
|
Constant Currect
|

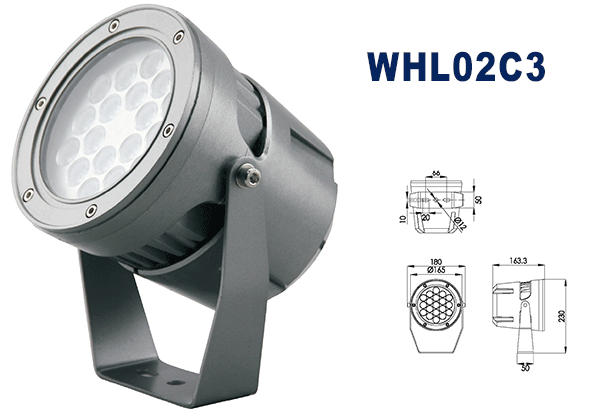

WHL02C3
|
Artical code
|
LED Quantities
|
Beam Angle
|
Power
|
CCT
|
Input Voltage
|
Installation
|
IP Grade
|
Control Method
|
|
L02C3-018-P20
|
18pcs
|
5°/12.5°/20°/30°/60°/15x30°/10x60° |
21W
|
Single
|
AC100-277V/DC24V
|
Bracke
|
IP66
|
Constant Currect
|
|
Artical code
|
LED Quantities
|
Beam Angle
|
Power
|
CCT
|
Input Voltage
|
Installation
|
IP Grade
|
Control Method
|
|
L02C3-018-P30
|
18pcs
|
5°/12.5°/20°/30°/60°/15x30°/10x60° |
30W
|
Single
|
AC100-277V/DC24V
|
Bracket
|
IP66
|
Constant Currect
|
|
Artical code
|
LED Quantities
|
Beam Angle
|
Power
|
CCT
|
Input Voltage
|
Installation
|
IP Grade
|
Control Method
|
|

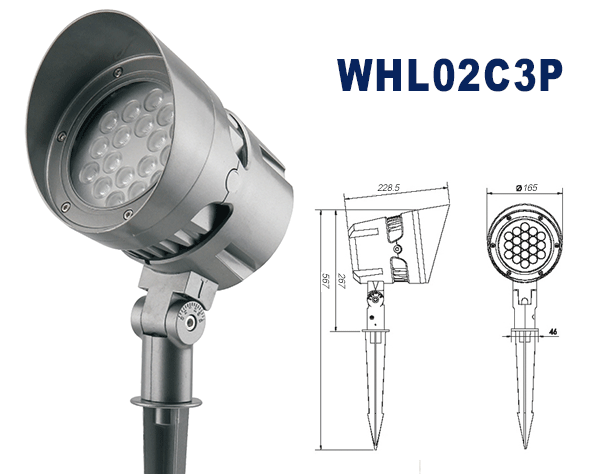

L02C3P-018-P20
|
18pcs
|
5°/12.5°/20°/30°/60°/15x30°/10x60° |
21W
|
Single
|
AC100-277V/DC24V
|
Ground Pin
|
IP66
|
Constant Currect
|
|
Artical code
|
LED Quantities
|
Beam Angle
|
Power
|
CCT
|
Input Voltage
|
Installation
|
IP Grade
|
Control Method
|
|
L02C2P-018-P30
|
18pcs
|
5°/12.5°/20°/30°/60°/15x30°/10x60° |
30W
|
Single
|
AC100-277V/DC24V
|
Ground Pin
|
IP66
|
Constant Currect
|

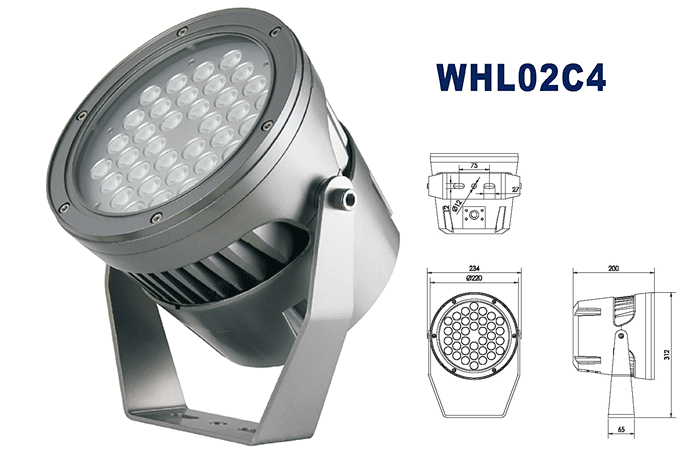

WHL02C4
|
Artical code
|
LED Quantities
|
Beam Angle
|
Power
|
CCT
|
Input Voltage
|
Installation
|
IP Grade
|
Control Method
|
|
L02C4-024-P50
|
24pcs
|
5°/12.5°/20°/30°/60°/15x30°/10x60° |
50W
|
Single
|
AC100-277V/DC24V
|
Bracke
|
IP66
|
Constant Currect
|
|
Artical code
|
LED Quantities
|
Beam Angle
|
Power
|
CCT
|
Input Voltage
|
Installation
|
IP Grade
|
Control Method
|
|
L02C4-036-P60
|
24pcs
|
5°/12.5°/20°/30°/60°/15x30°/10x60° |
