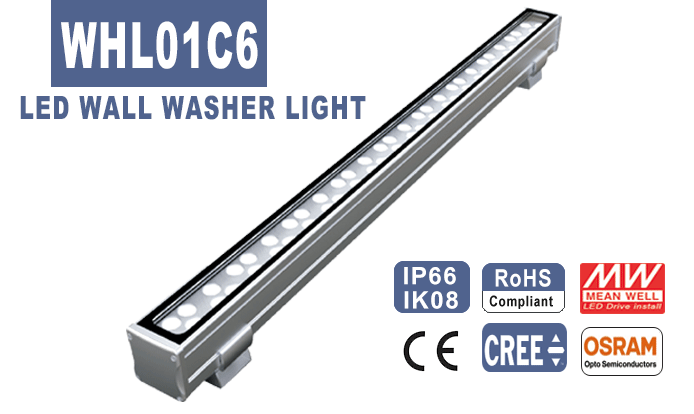

WHL01C6 Series
Detail:

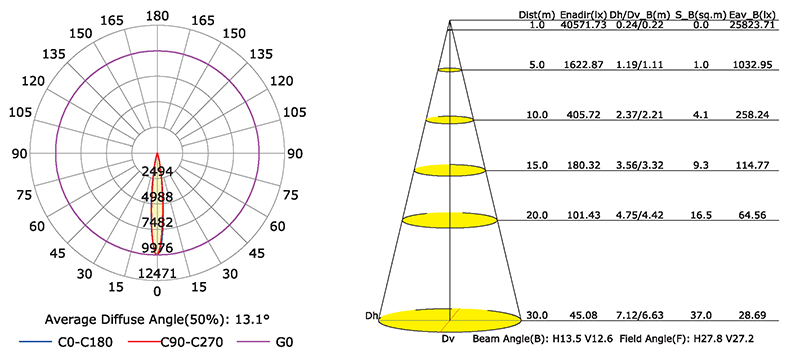

Light Distribution Curve

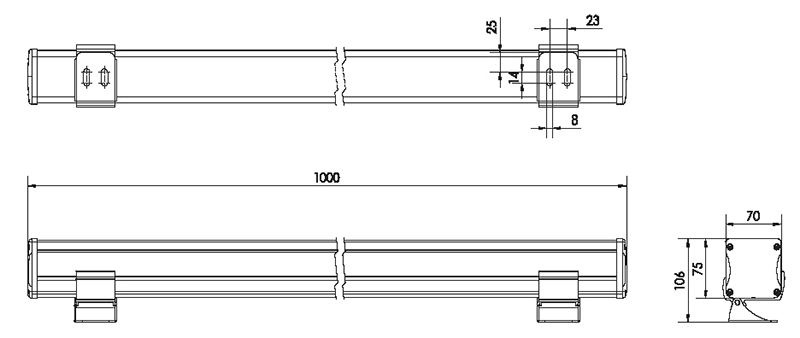

Lamp Structure
Specification:
|
Products Code
|
WHL01C06-027 -0.5M-P30 |
WHL01C06-027 -0.5M-P54 |
WHL01C06-054 -1M-P60 |
WHL01C06-054 -1M-P72 |
|
LED Quantity
|
27 pcs
|
27 pcs
|
54 pcs
|
54 pcs
|
|
Rated Power
|
30 W
|
54 W
|
60 W
|
72 W
|
|
LED Source
|
CREE-XPE
|
|||
|
Input Voltage
|
100-240VAC / 50-60Hz
|
|||
|
Colour
Temperature
|
5000K/4000K/3000K / RGB
|
|||
|
Control Mode
|
Constant current / DMX512
|
|||
|
Lamp Luminous
Flux
|
2100lm(white)
|
3780lm(White)
|
5040lm(White)
|
5040lm(White)
|
|
Beam of Angle
Choose
|
5°/12.5°/20°/30°/60°/ 15x30°/ 10x60°
|
|||
|
Temp.of
Working Condition
|
-35℃ to 50℃
|
|||
|
Hud. Of
Working Condition
|
10% to 90%
|
|||
|
Lifetime
|
>70 000 Hours
|
|||
|
Warranty
|
3 years
|
|||
|
IP Rating
|
IP66
|
|||
|
IK Rating
|
IK08
|
|||
|
Product Size
|
500 * 58 *H106mm
|
500 * 58 *H106mm
|
1000 * 58 x *106mm
|
1000 * 58 x *106mm
|
|
Lamp Weight
(Kgs)
|
1.5
|
1.5
|
2.2
|
2.2
|
|
Carton Packing
Size
|
52 x 38 x 24 cm
(10pc/Ctn)
|
52 x 38 x 24 cm
(10pc/Ctn)
|
103 x 25 x 26cm
(10pc/Ctn)
|
103 x 25 x 26cm
(10pc/Ctn)
|
|
Gross Weight
(Kgs)
|
16
|
16
|
24
|
24
|
|
Certificate
|
CE,Rohs
|
|||
