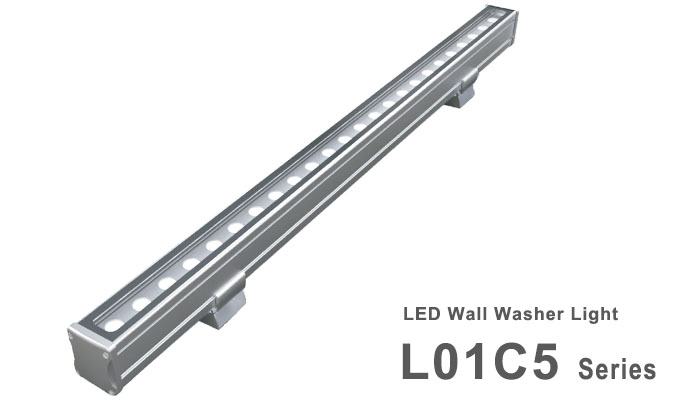

L01C5 Series
Detail:
Specification
|
Products Code
|
WHL01C05-009 -0.5M-P11 |
WHL01C05-012 -1M-P14 |
WHL01C05-018 -1M-P22 |
WHL01C05-024 -1M-P28 |
WHL01C05-036 -1M-P42 |
|
LED Quantity
|
9
pcs
|
12
pcs
|
18
pcs
|
24
pcs
|
36 pcs
|
|
Rated Power
|
11
W
|
14W
|
22W
|
28
W
|
42 W
|
|
LED Source
|
CREE /OSRAM
|
||||
|
Input Voltage
|
100-240VAC /50-60Hz
|
||||
|
Colour Temperature
|
5000K/4000K/3000K / RGB
|
||||
|
Control Mode
|
Constant current / DMX512
|
||||
|
Lamp Luminous Flux
|
770lm(white)
|
980lm(White)
|
1540lm(White)
|
1960lm(White)
|
2940 lm(White)
|
|

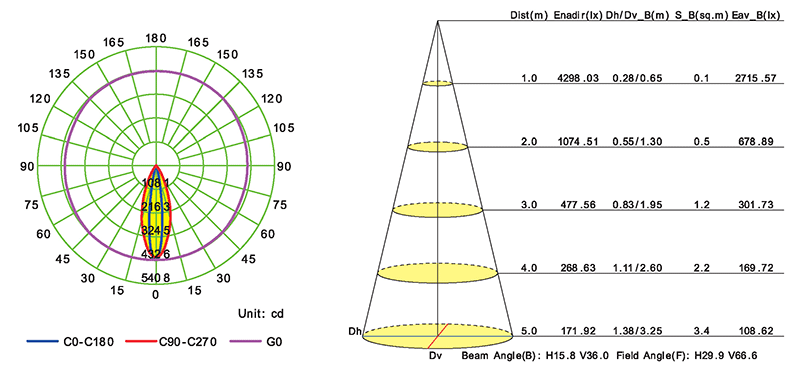

Beam of Angle Choose
|
5°/12.5°/20°/30°/60°/ 15x30°/ 10x60°
|
||||
|
Temp.of Working Condition
|
-35℃ to 50℃
|
||||
|
Hud. Of Working Condition
|
10% to 90%
|
||||
|
Lifestime
|
>70 000 Hours
|
||||
|
Warranty
|
3 years
|
||||
|
IP Rating
|
IP66
|
||||
|
IK Ratng
|
IK08
|
||||
|

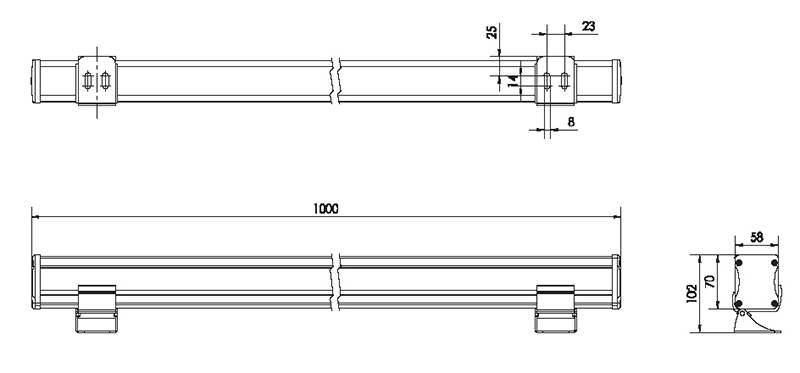

Product Size
|
500
* 58* 102mm
|
1000
*58 *102mm
|
1000
*58 *102mm
|
1000
*58 *102mm
|
1000
*58 *102mm
|
|
Lamp Weight (Kgs)
|
1.5
|
2.2
|
2.2
|
2.2
|
2.2
|
|
Carton Packing Size
|
59
x 33 x 22 cm (10pc/Ctn)
|
109
x 33 x 22 cm (10pc/Ctn)
|
109
x 33 x 22 cm (10pc/Ctn)
|
109
x 33 x 22 cm (10pc/Ctn)
|
109 x 33 x 22 cm
(10pc/Ctn)
|
|
Gross Weight (Kgs)
|
16
|
24
|
24
|
24
|
24
|
|
Certificate
|
CE,Rohs
|
||||
