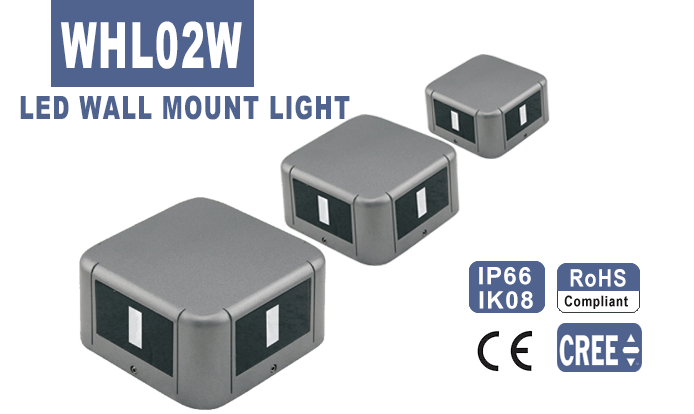

WHL02W Series
Detail:

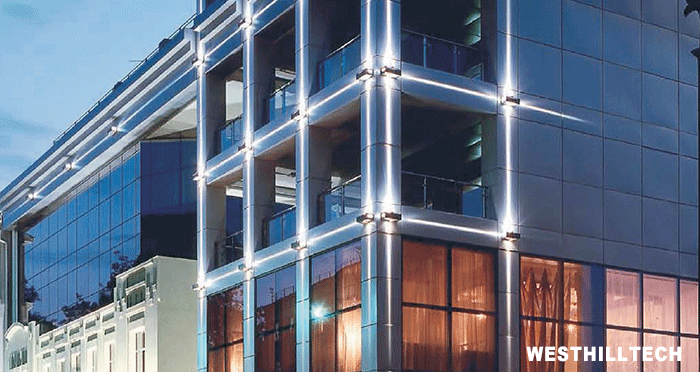

Application: Shopping Mall, Wine Bar,KTV, Building lighting or Special facade etc.
1. Lower consumption,Green Products.
2. 2/4/12pcs CREE LEDs, Lower power,High Lumens.
3. IP66 Waterproof.
4. Toughened glass mask, higher strength, impact resistance.
5. Builte-in driver,AC100-240V input.
6. Narrow beam and wide beam can be chosen.

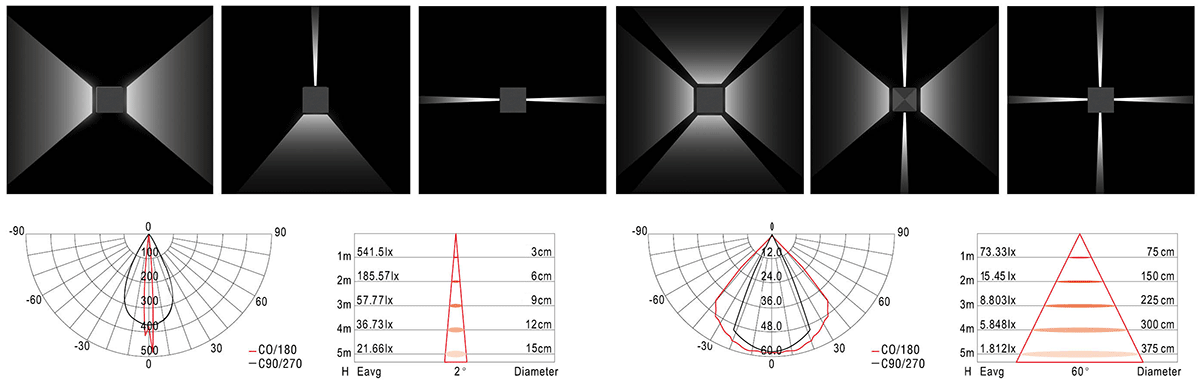

Light Distribution Curve

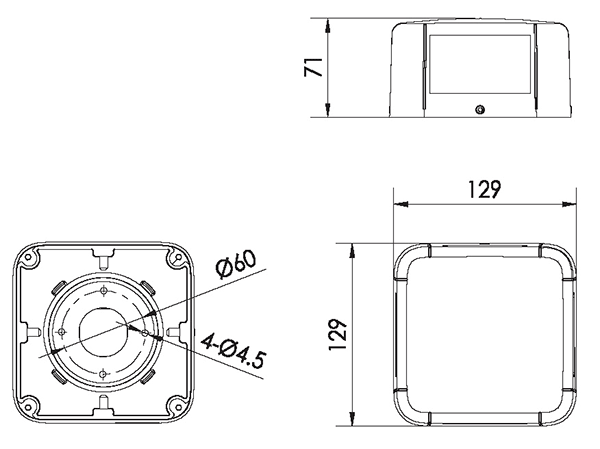

Lamp Structure
Specification
|
Products
Code
|
WHL02W-02-P4
|
WHL02W-04-P8
|
|
LED Quantity
|
2 pcs
|
4 pcs
|
|
LED Source
|
CREE
|
CREE
|
|
Rated Power
|
4.0 W
|
8 W
|
|
Input Voltage
|
100-240VAC
|
100-240VAC
|
|
Colour Choose
|
Single colour
|
Single colour
|
|
Colour
Temperature
|
6000K/4000K/3000K(white
color)
|
6000K/4000K/3000K(white
color)
|
|
Control Mode
|
Constant current
|
Constant current
|
|
Lamp Luminous
Flux
|
366lm(white)
|
532lm(White)
|
|
Beam of Angle
Choose
|
2°/60°
|
2°/60°
|
|
Temp.of
Working Condition
|
-35℃ to 50℃
|
-35℃ to 50℃
|
|
Hud. Of
Working Condition
|
10% to 90%
|
10% to 90%
|
|
Lifetime
|
>70 000 Hours
|
>70 000 Hours
|
|
Warranty
|
3 years
|
3 years
|
|
IP Rating
|
IP66
|
IP66
|
|
IK Rating
|
IK08
|
IK08
|
|
Lamp Weight
(Kgs)
|
1
|
1
|
|
Carton Packing
Size
|
29cm x 29 cm x
39cm(12pc/Ctn)
|
29cm x 29 cm x
39cm(12pc/Ctn)
|
|
Gross Weight
(Kgs)
|
14
|
14
|
|
Certificate
|
CE,Rohs
|
CE,Rohs
|
