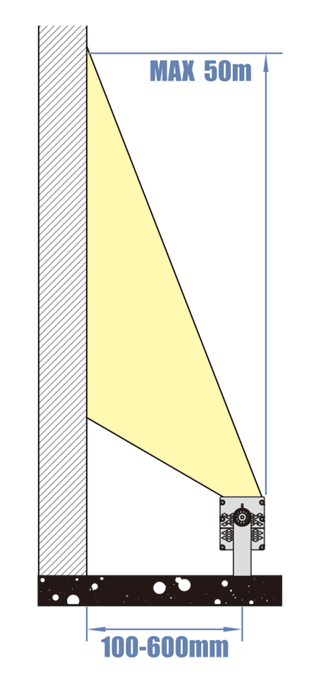

Application: Commercial building, bridge, historic building or special facade etc
1. Combine flood light with wall wash light, best for high-level lighting which can replace traditional high power flood light.
2. Mesh ventilating provides effective dissipate heat max 100W.
3. Integrated bracket and strong structure.
4. reinforced aluminum alloy housing, die-casting aluminum cover, smooth self-cleaning surface, nice appearance design and strong structure design.
5. Segregated input wire design avoids steam come into housing.
6. Piston waterproof structure design ,IP66.
7. Driver and signal part with anti-surge , anti-lightning , anti-electrodepositive design, max 4KV.

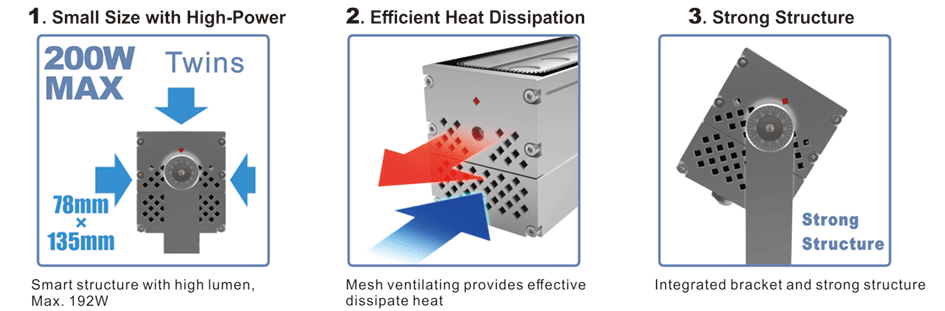

Innovation

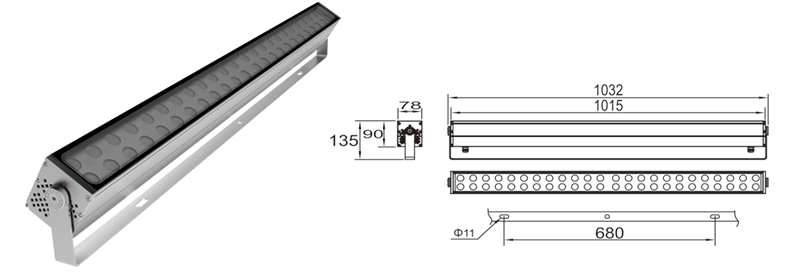

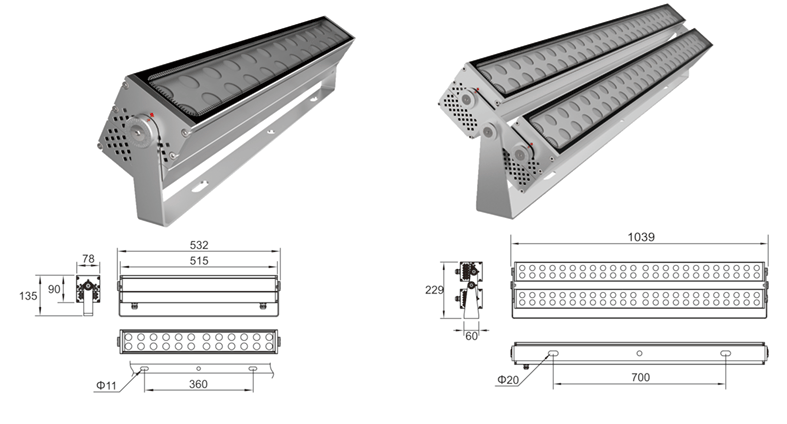

Lamp Structure

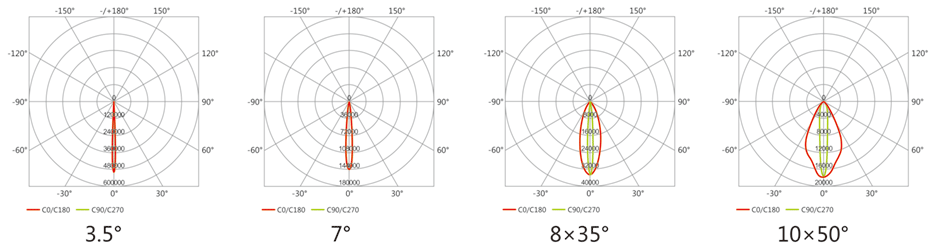

Light Distribution Curve
Specification
|
Products
Code
|
WHL01C-018-0.5M-P18
|
WHL01C-018-0.5M-P18-3.5
|
WHL01C-024- 0.5M-P24 |
WHL01C-024- 0.5M-P48 |
WHL01C-036-1M-P36
|
|
LED Quantity
|
18
pcs
|
18
pcs
|
24
pcs
|
24
pcs
|
36
pcs
|
|
Fixture Size
|
L530* W78 *H90mm
|
L530
*W78 *H90mm
|
L530
* W78 *H90mm
|
L530
*W78 *H90mm
|
L1030
*W78 *H90mm
|
|
LED Source
|
OSRAM
|
OSRAM
|
OSRAM
|
OSRAM
|
OSRAM-SQUARE
|
|
Rated Power
|
18
W
|
22
W
|
24
W
|
48
W
|
36
W
|
|
Input Voltage
|
100-277VAC
|
100-277VAC
|
100-277VAC
|
100-277VAC
|
100-277VAC
|
|
Colour Temperature
|
5500K/4000K/3000K / RGB
|
||||
|
Control Mode
|
Constant current / DMX512
|
||||
|
Lamp Luminous Flux
|
1659lm(white)
|
1765lm(White)
|
2236lm(White)
|
4412lm(White)
|
3250lm(White)
|
|
Beam of Angle
|
7°/8x35°/10x50°
|
3.5°
|
7°/8x35°/10x50°
|
||
|
Temp.of Working Environment
|
-35℃ to 50℃
|
-35℃ to 50℃
|
-35℃ to 50℃
|
-35℃ to 50℃
|
-35℃ to 50℃
|
|
Hud. Of Working Condition
|
10%
to 90%
|
10%
to 90%
|
10%
to 90%
|
10%
to 90%
|
10%
to 90%
|
|
Lifetime
|
>70
000 Hours
|
>70
000 Hours
|
>70
000 Hours
|
>70
000 Hours
|
>70
000 Hours
|
|
Warranty
|
3
years
|
3
years
|
3
years
|
3
years
|
3
years
|
|
IK Rating
|
IP66
|
IP66
|
IP66
|
IP66
|
IP66
|
|
IK Rating
|
IK08
|
IK08
|
IK08
|
IK08
|
IK08
|
|
Lamp Weight (Kgs)
|
3.5
|
3.5
|
4
|
4
|
7
|
|
Carton Packing Size
|
55*9 *15 cm
|
55*9 *15 cm
|
55*9 *15 cm
|
55*9 *15 cm
|
105* 9 *15 cm
|
|
Gross Weight (Kgs)
|
4
|
4
|
4.5
|
4.5
|
7.5
|
|
Certificate
|
CE,Rohs
|
CE,Rohs
|
CE,Rohs
|
CE,Rohs
|
CE,Rohs
|
|
Products
Code
|
WHL01C-036-1M-P36-3.5
|
WHL01C-036-1M-P72
|
WHL01C-048-1M-P48
|
WHL01C-048-1M-P96
|
WHL01C-048-1M-P192
|
|
LED Quantity
|
36
pcs
|
36
pcs
|
48
pcs
|
48
pcs
|
96
pcs
|
|
Fixture Size
|
L1030* W78*H90mm
|
L1030* W78*H90mm
|
L1030* W78*H90mm
|
L1030* W78*H90mm
|
L1039* W90 * H229mm
|
|
LED Source
|
OSRAM
|
OSRAM
|
OSRAM
|
OSRAM
|
OSRAM
|
|
Rated Power
|
36 W
|
72 W
|
48 W
|
96 W
|
192 W
|
|
Input Voltage
|
100-277VAC
|
100-277VAC
|
100-277VAC
|
100-277VAC
|
100-277VAC
|
|
Colour
Temperature
|
5500K/4000K/3000K / RGB
|
||||
|
Control Mode
|
Constant current / DMX512
|
||||
|
Lamp
Luminous Flux
|
3250lm(white)
|
6473m(White)
|
8902m(White)
|
8528m(White)
|
16203m(White)
|
|
Beam of Angle
|
3.5°
|
7°/8x35°/10x50°
|
|||
|
Temp.of Working Environment
|
-35℃ to 50℃
|
-35℃ to 50℃
|
-35℃ to 50℃
|
-35℃ to 50℃
|
-35℃ to 50℃
|
|
Hud. Of Working Condition
|
10% to 90%
|
10%
to 90%
|
10%
to 90%
|
10%
to 90%
|
10%
to 90%
|
|
Lifetime
|
>70 000 Hours
|
>70
000 Hours
|
>70
000 Hours
|
>70
000 Hours
|
>70
000 Hours
|
|
Warranty
|
3 years
|
3
years
|
3
years
|
3
years
|
3
years
|
|
IP Rating
|
IP66
|
IP66
|
IP66
|
IP66
|
IP66
|
|
IK Rating
|
IK08
|
IK08
|
IK08
|
IK08
|
IK08
|
|
Lamp Weight (Kgs)
|
7
|
7.5
|
7
|
7.5
|
19
|
|
Carton Packing Size
|
105*9*15 cm
|
105* 9 *15 cm
|
105* 9 *15 cm
|
105* 9 *15 cm
|
105*15 *29 cm
|
|
Gross Weight (Kgs)
|
7.5
|
8
|
7.5
|
8
|
20
|
|
Certificate
|
CE,Rohs
|
CE,Rohs
|
CE,Rohs
|
CE,Rohs
|
CE,Rohs
|
