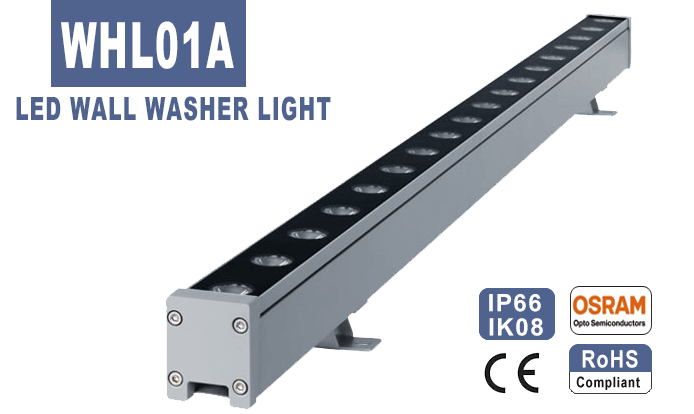

WHL01A Series
Detail:
Application: Commercial building, bridge, historic building or special facade etc
1. Reinforced aluminum alloy housing, die-casting aluminum cover, smooth self-cleaning surface, nice appearance design and strong structure design.
2. Integrated heat radiation design efficient transfers heat to outside.
3. Plug Type Waterproof Structure , IP66.
4. Invisible trunking design makes fixture succinct.
5. Narrow beam angle, max to 12M.
6. Segregated input wire design avoids steam come into housing.
7. Driver and signal part with anti-surge, anti-lightning, anti-electrodepositive design, max 4KV.
Innovation

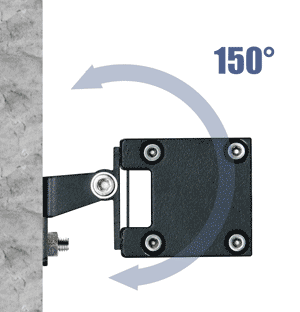

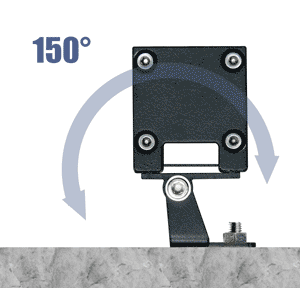

Lamp Structure

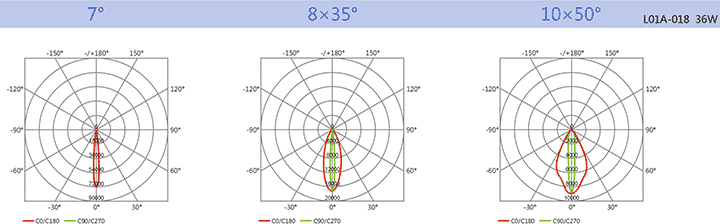

Light Distribution
Specification
|
Products
Code
|
WHL01A-009
|
WHL01A-012
|
WHL01A-018
|
WHL01A-024
|
WHL01A-036
|
|
LED Quantity
|
9
pcs
|
12
pcs
|
18
pcs
|
24
pcs
|
36
pcs
|
|
Rated Power
|
9W
/ 18W
|
12W
/ 24W
|
18W
/ 36W
|
24W
/ 48W
|
36W
/ 60W
|
|
Luminous Flux
|
1655
lm
|
2183lm
|
3257lm
|
4343lm
|
5792lm
|
|
Optical Angle
|
7°/8×35°/10×50°
|
||||
|
Color Temperature
|
3000/4000/5500K
/ RGB
|
||||
|
Temp. of Working Environment
|
-35℃ - +50℃
|
||||
|
Hud. Of Working Condition
|
10% - 90%
|
||||
|
Input Voltage
|
DC24V
|
||||
|
IP Rating
|
IP66
|
||||
|
IK Rating
|
IK08
|
||||
|
Lifetime
|
>70 000 Hours
|
||||
|
Warranty
|
3 Years
|
||||
|
Net Weight
|
1.0
kg
|
1.9
kg
|
2.0
kg
|
2.1
kg
|
2.2
kg
|
|
Gross Weight
|
1.5
kg
|
2.4
kg
|
2.6
kg
|
2.7
kg
|
2.8
kg
|
|

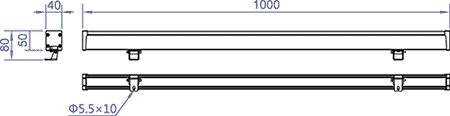

Product Size
|
L500*W40*H50mm
|
L1000*W40*H50mm
|
|||
|
Packing Size( CM)
|
52*6*9
(1pcs/box)
|
102*6*9
(1pc/box)
|
|||
|
57*46*26 (12pcs/box)
|
107*46*26(12pcs/box)
|
||||
