Minluxe Series
Detail:

Industrial Lights Minluxe-series LED Industrial lights, 100W, 120W

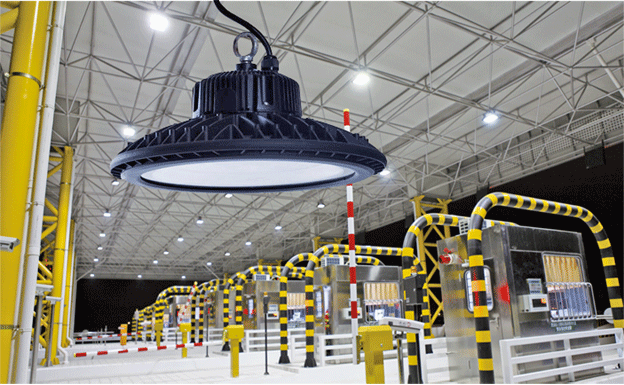

Minluxe series LED Industrial Light, using the circular design of traditional style, concise and lively; Adopt the die casting aluminum lamp body, firm structure, strong impact resistance; Science LED heat dissipation design ensures high continuous work; Humanized design, make lamp of installation and maintenance more convenient; It is an excellent high performance lighting products for plant, station, warehouse and mining.


1. Ultra-thin light body design, Adopt the high strength and low density of die-casting aluminum material, Not only loss the

    weight, at the same time improve the efficiency of lamp.

2. Efficient heat dissipation design, form convection, effectively improve the heat dissipation effect of lamp.

3. High strength of toughened glass, through special craft manufacture, has a better light performance, improve the

   brightness of lamp.







 Products Code
ML-105-P100
ML-118-P120
 LED Quantity
105 pcs SMD3030
118 pcs SMD3030
 Rated Power
100 W
120 W
 Input Voltage
100-277VAC / 50-60Hz
 Power Factor
>0.95
 Colour Temperature
5500K/4000K/3000K
 Color Rendering Index
> 80
 Luminous Flux
10482lm
12733lm
 Temp.of Working Condition
-35° ~ 50°
 Humidity of Working Condition
10% ~ 90%
 Light Lifetime
> 70000H
 Protection Grade
IP65

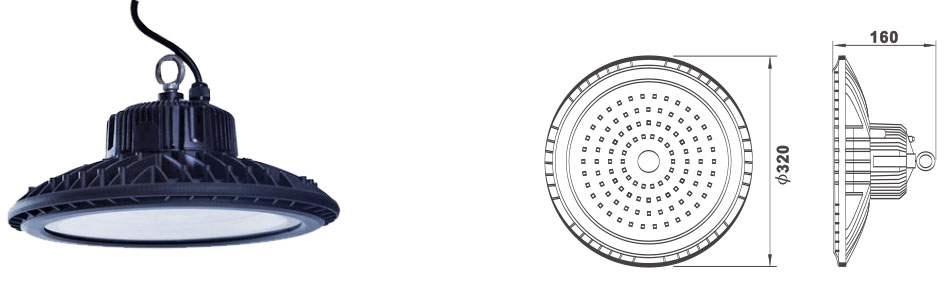

 Fixture Size
Φ420xH165mm
 Installation
Hock Lifting
 Lamp Weight
4kgs
4.2kgs
