WHL09H Series
Detail:
Overview
Higher performance and lower consumption.
The WHT H-Series LED High Bay Lights are using highly luminous efficient LUXEON TX of LUMILEDS® and highly reliable MEANWELL/PHILIPS driver. Gived 5years warranty.
Fixture Color
Grey Silver

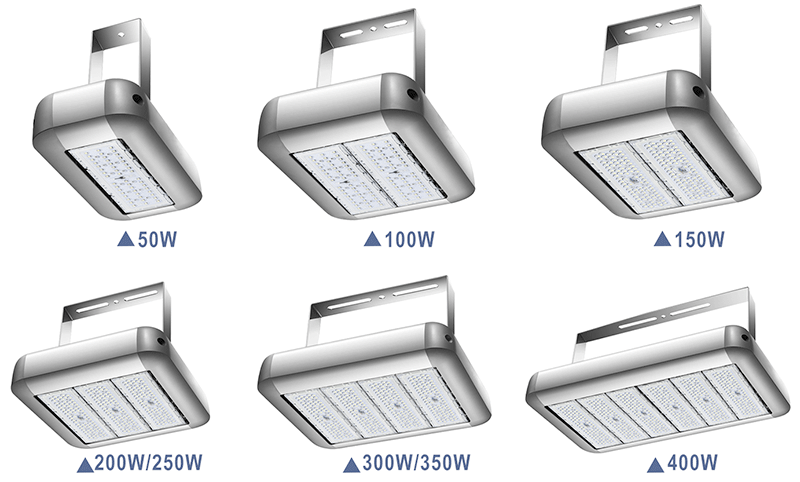

Power Available
Highly Performance

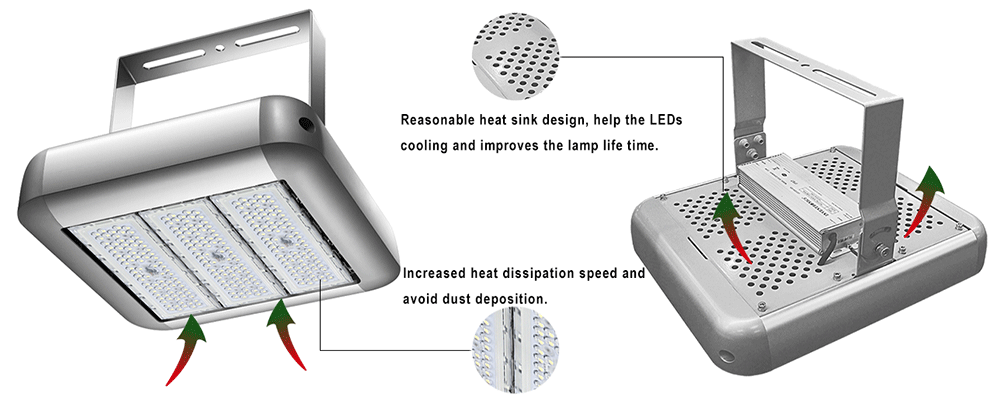

Professional Heat Design

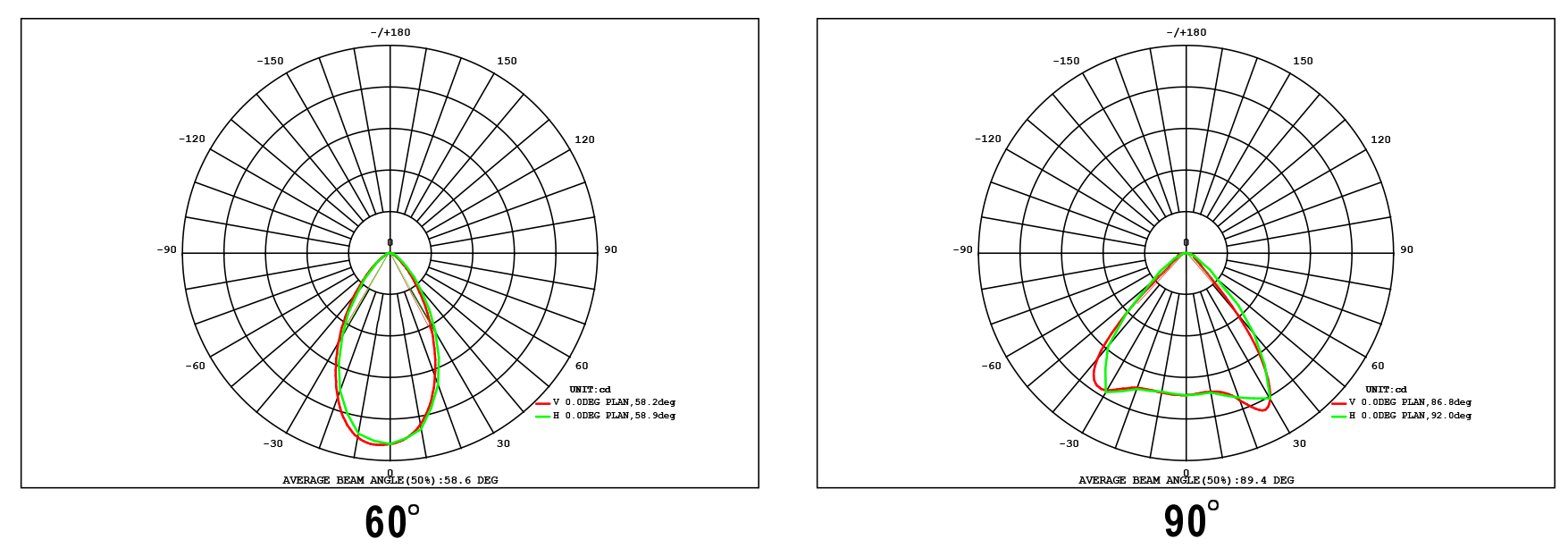

Light Distribution Curve
Specification
|
Products
code
|
WHL09H50
|
WHL09H100
|
WHL09H150
|
WHL09H200
|
WHL09H300
|
WHL09H400
|
|
Rated Power
|
50W
|
100W
|
150W
|
200W
|
300W
|
400W
|
|
LED Source
|
LUXEON TX/OSRAM DURIS S5/LG X9
|
|||||
|
LED Quantity
|
48pcs
|
96pcs
|
168pcs
|
252pcs
|
336pcs
|
504pcs
|
|
Temperature Color
|
4000K/5500K
|
|||||
|
Lamp Efficiency
|
≥115 Lm/W
|
|||||
|
Luminuous Flux
|
≥5750Lm
|
≥11500Lm
|
≥17250Lm
|
≥23000Lm
|
≥34500Lm
|
≥46000Lm
|
|
Color Index
|
＞70
|
|||||
|
Beam Angle
|
60°/90°
|
|||||
|
Input Voltage
|
100-240VAC
|
|||||
|
Frequency Range
|
50/60Hz
|
|||||
|
Output Voltage
|
48V(±5%)
|
96V(±5%)
|
144V(±5%)
|
216V(±5%)
|
288V(±5%)
|
432V(±5%)
|
|
Output Current
|
860mA
|
|||||
|
System Power
|
48W(±5%)
|
95W(±5%)
|
140W(±5%)
|
190W(±5%)
|
280W(±5%)
|
380W(±5%)
|
|
LED Power
|
43.2W(±5%)
|
85.5W(±5%)
|
126W(±5%)
|
171W(±5%)
|
252W(±5%)
|
342W(±5%)
|
|
Power Efficiency
|
＞0.9
|
|||||
|
Lifetime
|
>50 000 Hours
|
|||||
|
Fixture Material
|
Aluminum
|
|||||
|
IP Rating
|
IP67
|
|||||
|
IK Rating
|
IK08
|
|||||
|
Working Temperature
|
-40℃ - +50℃
|
|||||
|
Working Humidity
|
10%-90%
|
|||||
|
Storage Temperature
|
-40℃ - +50℃
|
|||||
|
Net Weight
|
3.1kg
|
5.2kg
|
5.4kg
|
6.8kg
|
8.8kg
|
11.9kg
|
|
Lamp Size
|
365*200*155mm
|
365*260*155mm
|
365*260*155mm
|
365*340*155mm
|
365*420*155mm
|
365*580*155mm
|
|
Package Size
|
520*430*220mm
|
430*345*220mm
|
430*345*220mm
|
430*425*220mm
|
430*505*220mm
|
430*665*220mm
|
|
Packing Quantity
|
2pcs/Ctn
|
1pcs/Ctn
|
1pcs/Ctn
|
1pcs/Ctn
|
1pcs/Ctn
|
1pcs/Ctn
|
