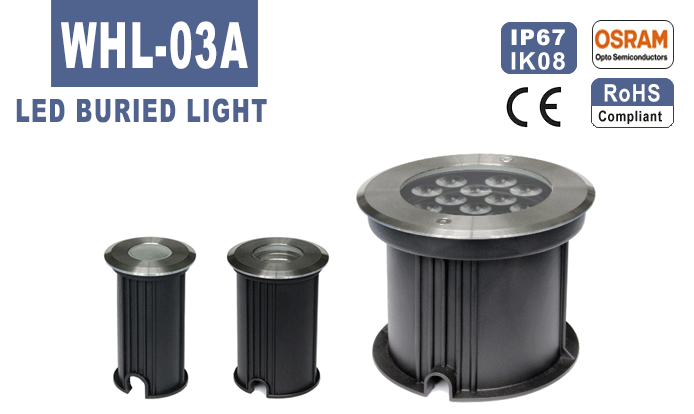

WHL03A Series
Detail:
Application: square, street, shopping street
1. 304 stainless steel with surface precise polishing treatment, offers beautiful appearance.
2. Structure waterproof technology ensures lamp with durable waterproof ability.
3. Toughened glass cover, impact resistance and crush resistance.
4. Out cable with anti siphon design, effectively avoid water come into lamp body
5. 24V low voltage input with lightning surge protect design, safety and reliable
Lamp Structure

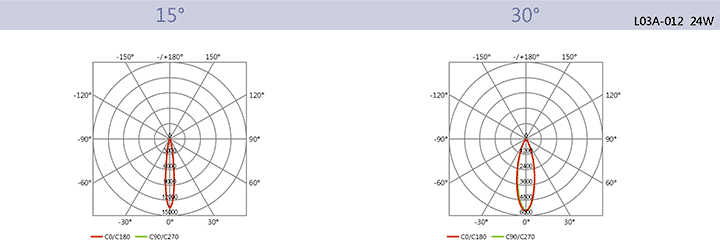

Light Distribution Curve
1. 304 stainless steel with surface precise polishing treatment, offers beautiful appearance.
2. Structure waterproof technology ensures lamp with durable waterproof ability.
3. Toughened glass cover, impact resistance and crush resistance.
4. Out cable with anti siphon design, effectively avoid water come into lamp body
5. 24V low voltage input with lightning surge protect design, safety and reliable
Lamp Structure
Light Distribution Curve
Specification
|
Products Code |
WHL03A-001 | WHL03A-003 | WHL03A-006 | WHL03A-009 | WHL03A-012 |
|---|---|---|---|---|---|
| LED Quantity | 1 pcs | 3 pcs | 6 pcs | 9 pcs | 12 pcs |
| Rated Power | 1W/3W | 3W/6W | 6W/12W | 9W/18W | 12W/24W |
| Luminous Flux | 189lm | 528lm | 1108lm | 1589lm | 2165lm |
| Optical Angle | 15°/30° | ||||
| Color Temperature | 3000K/4000K | ||||
| Temp. of Working Environment | -35～50℃ | ||||
| Input Voltage | DC 24V | ||||
| IP Rating | IP67 | ||||
| Net Weight | 0.6 kg |
1.0 kg |
1.1 kg |
1.2 kg |
1.3 kg |
| Gross Weight | 0.9 kg |
1.3 kg |
1.5 kg |
1.6 kg | 1.7 kg |

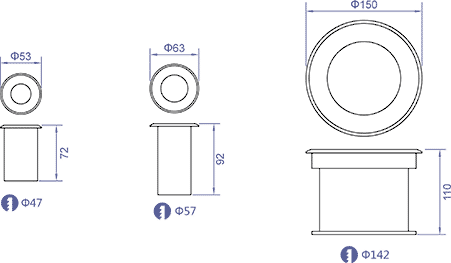

| Product Size | Φ53*72 mm |
Φ63*92 mm |
Φ150*110 mm |
||
|
Packing Size |
8*8*12cm (1pc/box) 36*17*27cm(20pcs/box) |
9*9*12cm (1pc/box) 39*20*26cm (8pcs/box) |
20*20*19cm (1pc/box) | ||
