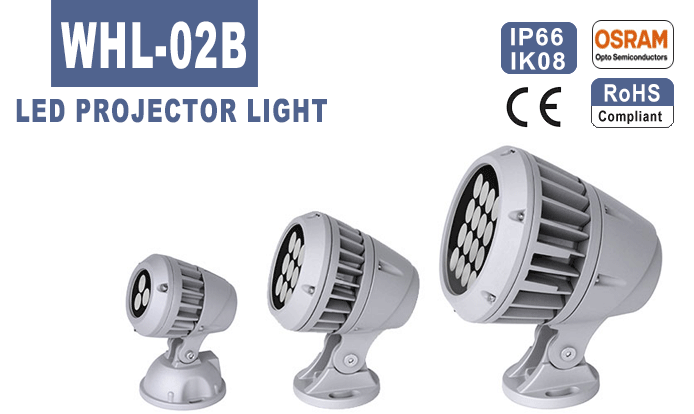

WHL02B Series
Detail:
Application: Commercial building, bridge, historic building or special facade etc
1. Die-casting aluminum with strong structure and beautiful appearance.
2. Independent light source and driver heat dissipation system with high efficiency which reduce lumen decrease
3. Optional optical LENS design, apply to different environment
4. Air breathe device which balances inside and outside air pressure.
5. Wide range input voltage and high grade surge protect ability offers excellent power system adaptability
1. Die-casting aluminum with strong structure and beautiful appearance.
2. Independent light source and driver heat dissipation system with high efficiency which reduce lumen decrease
3. Optional optical LENS design, apply to different environment
4. Air breathe device which balances inside and outside air pressure.
5. Wide range input voltage and high grade surge protect ability offers excellent power system adaptability

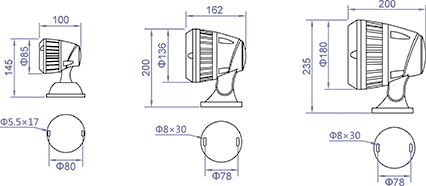

Lamp Structure

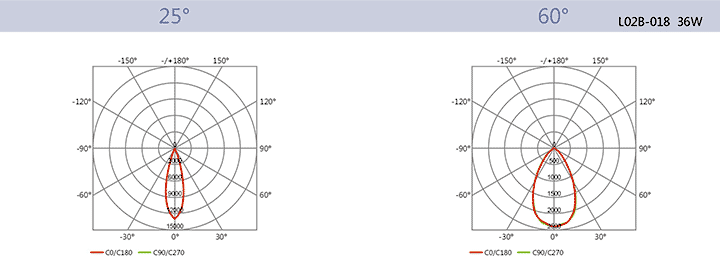

Light Distribution Curve
Specification
|
Products Code |
L02B-003 | L02B-009 | L02B-012 | L02B-018 | L02B-024 |
|---|---|---|---|---|---|
| LED Quantity | 3 pcs | 9 pcs | 12 pcs | 18 pcs | 24 pcs |
| Rated Power | 3W/6W | 9W/18W | 12W/24W | 18W/36W | 24W/48W |
| Luminous Flux | 528lm | 1589lm | 2165lm | 3088lm | 4136lm |
| Optical Angle | 25°/60° | ||||
| Color Temperature | 3000K/4000K/5500K/RGB | ||||
| Temp. of Working Environment | -35～50℃ | ||||
| Input Voltage | DC 24V/AC 100-277V | ||||
| IP Rating | IP66 | ||||
| Net Weight | 0.9/1.0 kg | 2.3/2.6 kg |
2.3/2.6 kg |
2.3/2.6 kg | 2.3/2.6 kg |
| Gross Weight | 1.3/1.4 kg | 2.8/3.1 kg | 2.8/3.1 kg | 2.8/3.1 kg | 2.8/3.1 kg |
| Product Size | Φ85*100*145mm | Φ136*162*200mm | Φ180*200*235mm | ||
| Packing Size |
13*19*15cm (1pc/box) 47*40*28cm (8pcs/box) |
19*25*22cm (1pc/box) | 23*29*25cm (1pc/box) | ||
