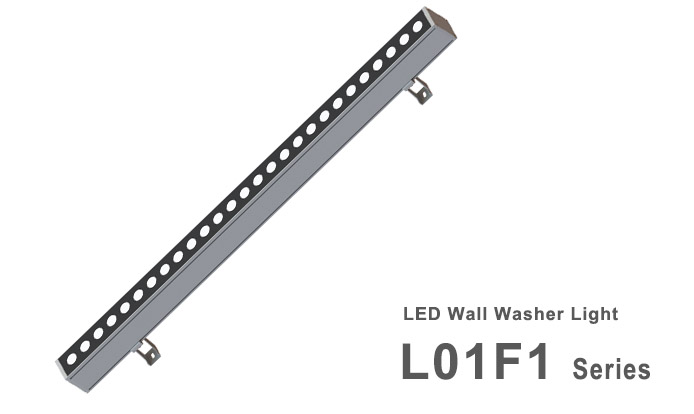

The WHL01F1 Series LED wall washer light of AC220V Driver built in the fixture. The light with original design thinking and style, independent intellectual property rights, fashionable and mode design, more artistic aesthetic feeling and perfect fusion with our use environment. White color and RGB can realize short mixing light requirements, implement specific lighting effects. Adopt high strength anti-corrosion aluminum alloy body, high lumens LED chip and constant current source technology, standard DMX512 control interface, and satisfies the requirement of stylist of various lighting; Not only ado urban scenery, more can highlight city bright spot, deduce beautiful style.
Parameter:
|
Artical code
|
LED Quantities
|
Beam Angle
|
Power
|
CCT
|
Input Voltage
|
Installation
|
IP Grade
|
Control Method
|
|
L02C1-003-P6
|
3pcs
|
5°/12.5°/20°/30°/60°/15x30°/10x60° |
6W
|
Single
|
AC100-277V/DC24V
|
Bracke
|
IP66
|
Constant Currect
|
|
Artical code
|
LED Quantities
|
Beam Angle
|
Power
|
CCT
|
Input Voltage
|
Installation
|
IP Grade
|
Control Method
|
|
L02C1-003-P8
|
3pcs
|
5°/12.5°/20°/30°/60°/15x30°/10x60° |
8W
|
Single
|
AC100-277V/DC24V
|
Bracket
|
IP66
|
Constant Currect
|
|
Artical code
|
LED Quantities
|
Beam Angle
|
Power
|
CCT
|
Input Voltage
|
Installation
|
IP Grade
|
Control Method
|
|
L02C1P-003-P6
|
3pcs
|
5°/12.5°/20°/30°/60°/15x30°/10x60° |
6W
|
Single
|
AC100-277V/DC24V
|
Ground Pin
|
IP66
|
Constant Currect
|
|
Artical code
|
LED Quantities
|
Beam Angle
|
Power
|
CCT
|
Input Voltage
|
Installation
|
IP Grade
|
Control Method
|
|
L02C1P-003-P8
|
3pcs
|
5°/12.5°/20°/30°/60°/15x30°/10x60° |
8W
|
Single
|
AC100-277V/DC24V
|
Ground Pin
|
IP66
|
Constant Currect
|
