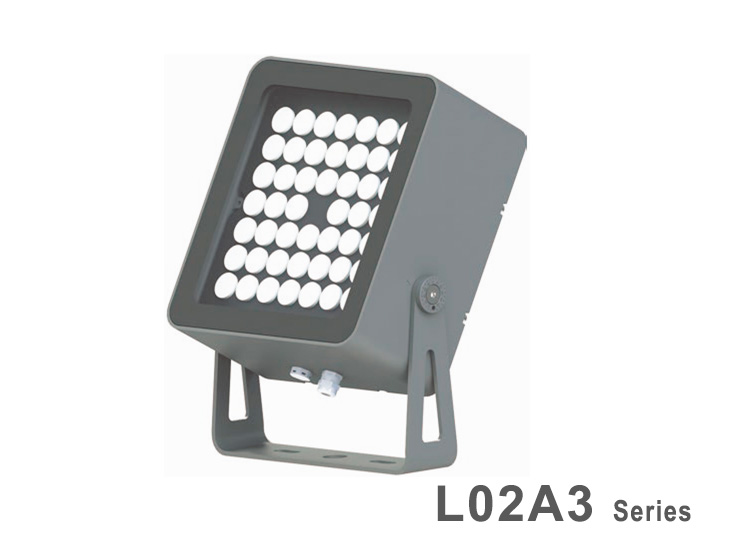

L02A3 Series
Detail:

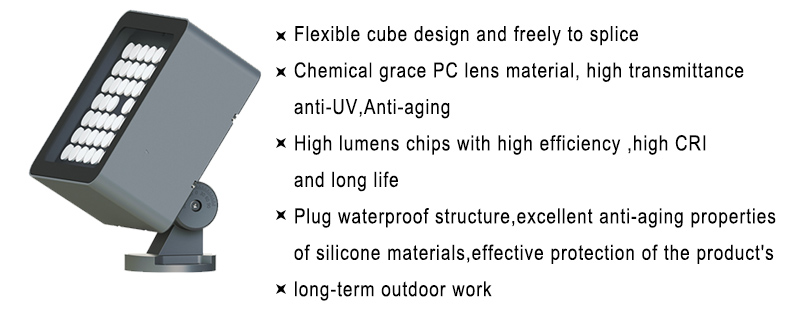

L02A3 Series LED Projector light inheriting the streamline design aesthetic feeling. Simple and fashion design, high efficient and energy saving. Smooth self-cleaning type of roof design to avoid the second pollution in our city. IP66 protection with durable electrostatic spray which apply to harsh outdoor applications. Reasonable layout design brings simple maintenance.

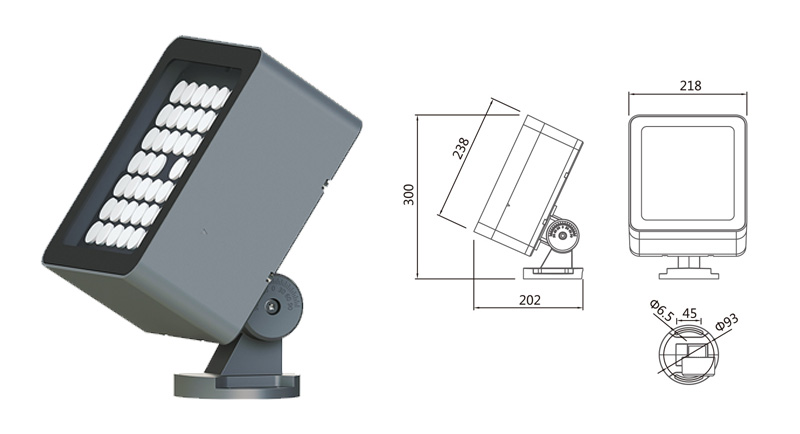

L02A3 Base Installation
Parameter:
|
Artical code
|
LED Quantities
|
Beam Angle
|
Power
|
CCT
|
Input Voltage
|

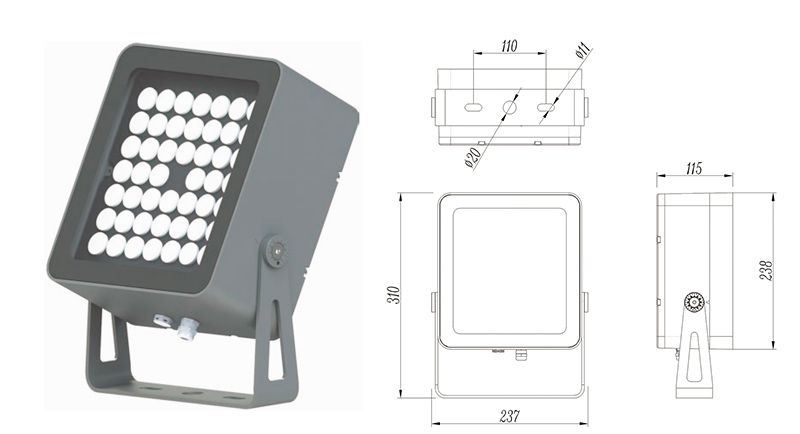

Installation
|
Control Method
|
|
L02A3-018-P45-D3
|
18pcs
|
3.5° |
45W
|
Single/RGB
|
AC100-277V/DC24V
|
Bracket/Base
|
Constant Currect/DMX512
|
|
Artical code
|
LED Quantities
|
Beam Angle
|
Power
|
CCT
|
Input Voltage
|
Installation
|
Control Method
|
|
L02A3-018-P45
|
18pcs
|
10°/15°/20°/30°/40°/60° |
45W
|
Single/RGB
|
AC100-277V/DC24V
|
Bracket/Base
|
Constant Currect/DMX512
|
|
Artical code
|
LED Quantities
|
Beam Angle
|
Power
|
CCT
|
Input Voltage
|
Installation
|
Control Method
|
|
L02A3-024-P60
|
24pcs
|
10°/15°/20°/30°/40°/60° |
60W
|
Single/RGB
|
AC100-277V/DC24V
|
Bracket/Base
|
Constant Currect/DMX512
|
|
Artical code
|
LED Quantities
|
Beam Angle
|
Power
|
CCT
|
Input Voltage
|
Installation
|
Control Method
|
|
L02A3-036-P80
|
36pcs
|
10°/15°/20°/30°/40°/60° |
80W
|
Single/RGB
|
AC100-277V/DC24V
|
Bracket/Base
|
Constant Currect/DMX512
|
|
Artical code
|
LED Quantities
|
Beam Angle
|
Power
|
CCT
|
Input Voltage
|
Installation
|
Control Method
|
|
L02A3-048-P100
|
48pcs
|
10°/15°/20°/30°/40°/60° |
100W
|
Single/RGB
|
AC100-277V/DC24V
|
Bracket/Base
|
Constant Currect/DMX512
|
