1. Be applied to outside building,bridge and ancient architecture for flood lighting.
2. Tempered glass with good higher transparency and high impact resistance.
3. Dia-case aluminum housing and intergration heat dissipation structure design.
4. Body surface of powder coation processed basing on the color of building background.
5. Science of waterproof structure design, high temperature resistant silicone seals, ensure the IP66 waterproof level.
6. Professional design of the mounting bracket, can according to the lighting requirements, achieve maximum rotate
180 degrees of freedom.
Lamp Structure/Innovation

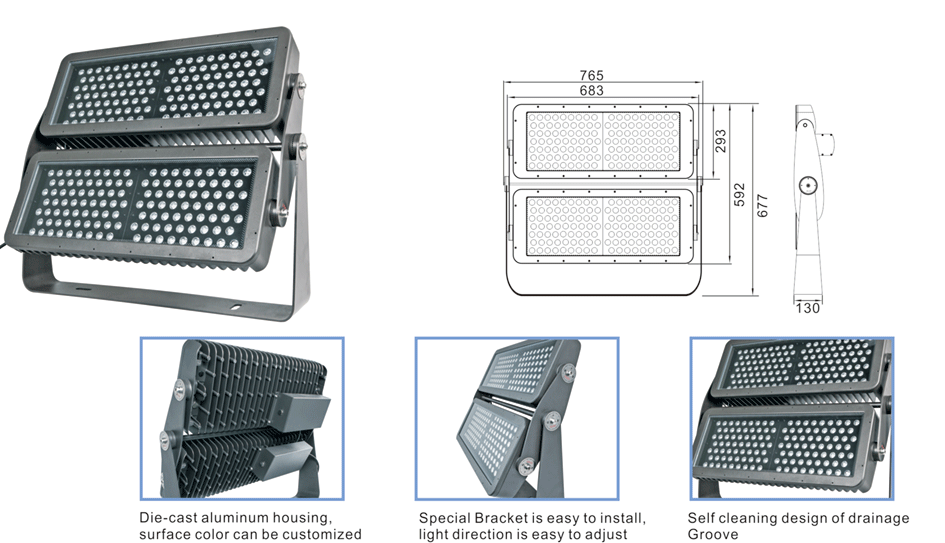

WHL02H-252-P600

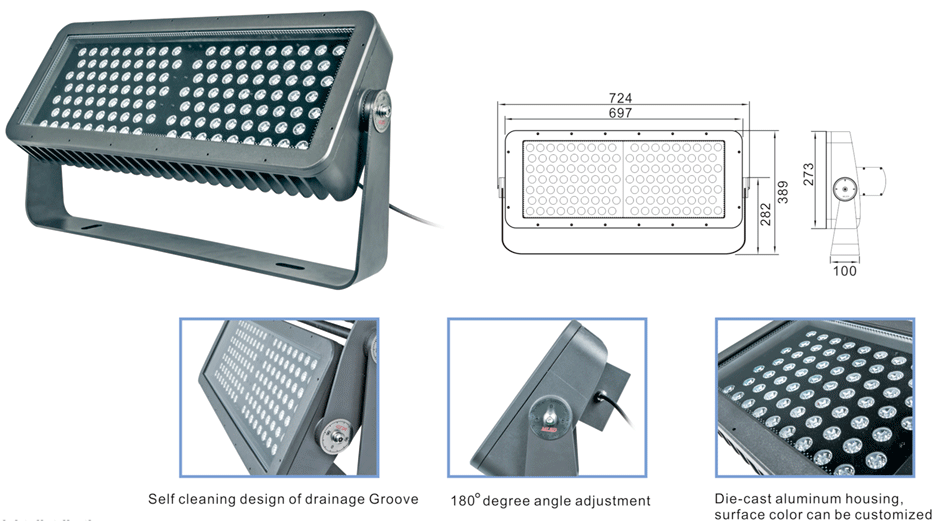

WHL02H-126-P300

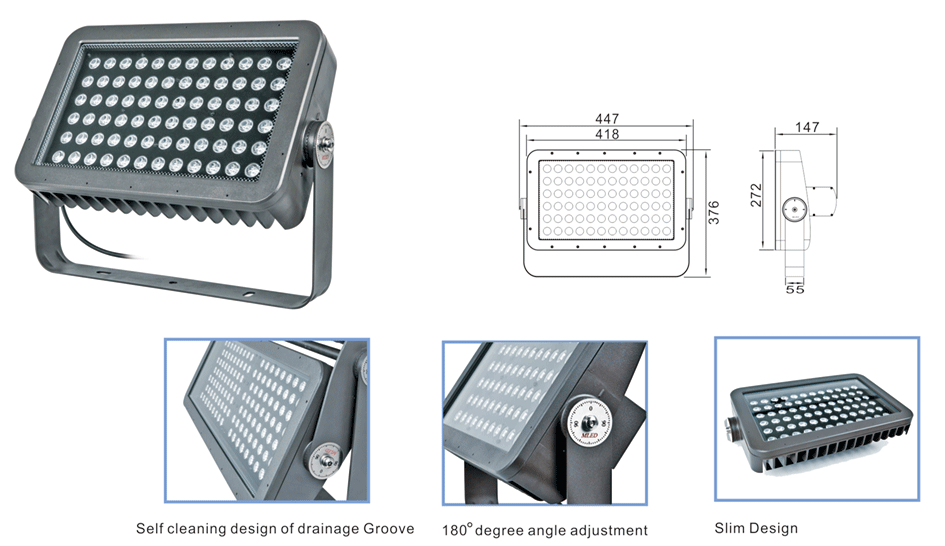

WHL02H-072-P150

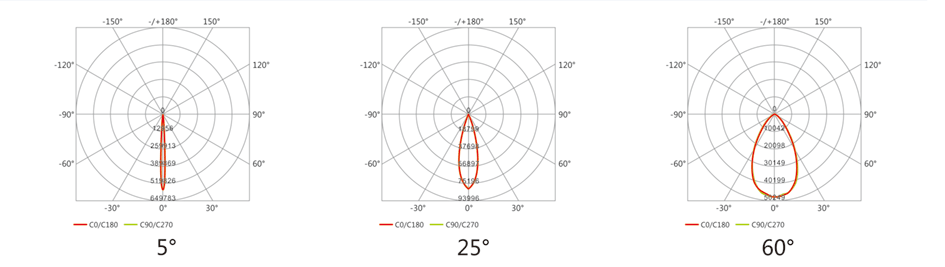

Light distribution Curve:
Specification
|
Products
Code
|
WHL02H-072-P150
|
WHL02H-126-P300
|
WHL02H-252-P600
|
|
LED Quantity
|
72 pcs
|
126 pcs
|
252 pcs
|
|
Rated Power
|
150 W
|
300 W
|
600 W
|
|
LED Source
|
CREE
|
||
|
Driver Supply
|
MEANWELL TW
|
||
|
Input
Voltage
|
100-277 VAC/50-60Hz
|
||
|
Control Mode
|
Constant Current / DMX512 Control
|
||
|
Colour
|
Single Color / RGBW Color
|
||
|
Colour
Temperature(Kelvin)
|
5500K/4000K/3000K/RGBW
|
||
|
Colour
Rendering Index
|
>70/5000K
|
||
|
Lamp Luminous
Flus(Lm)
|
≥15112lm
|
≥35620lm
|
≥73268lm
|
|
Beam Angle
Choose
|
5°/10°/25°/60°
|
||
|
Temp.of
Working Condition
|
-35℃ to 50℃
|
||
|
Hud. Of
Working Condition
|
10% to 90%
|
||
|
Lifetime
|
>50 000 Hours
|
||
|
Warranty
|
5 years
|
||
|
Fixture Material
|
Aluminum
|
||
|
IP Rating
|
IP66
|
||
|
IK Rating
|
IK08
|
||
|
Lamp
Weight(Kgs)
|
9
|
19
|
40
|
|
Carton
Packing Size
|
447*376*148mm
|
800*450*300
|
800*730*300
|
|
Gross Weight
|
11
|
21
|
42
|
|
Certificate
|
CE,Rohs
|
||
