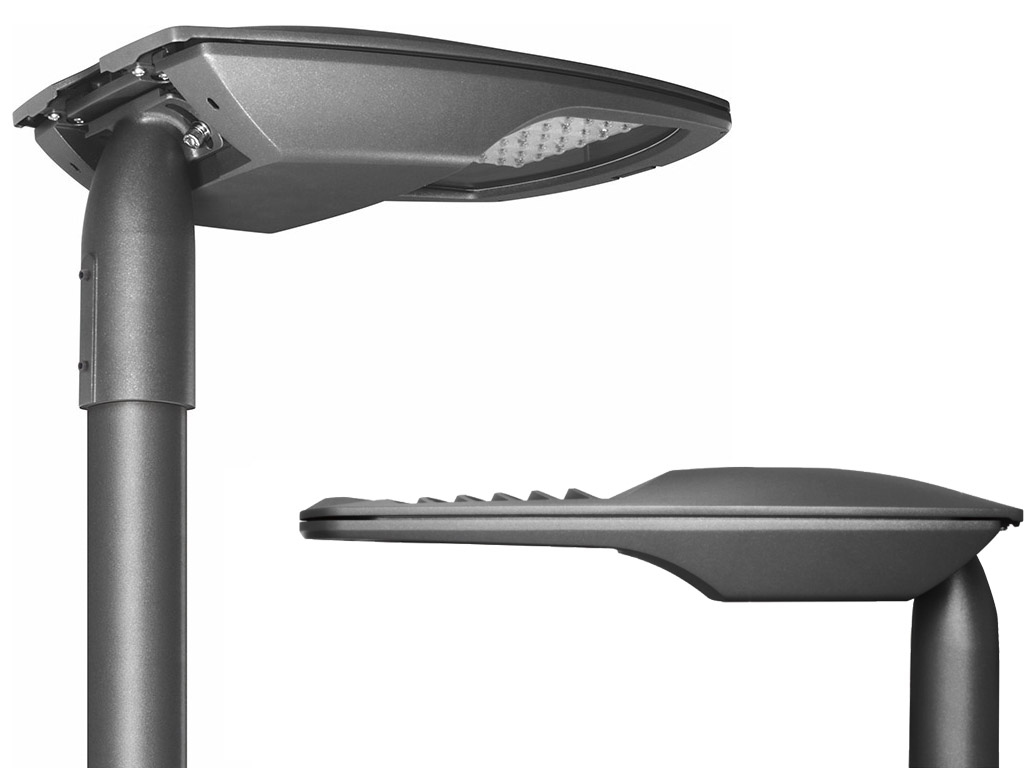

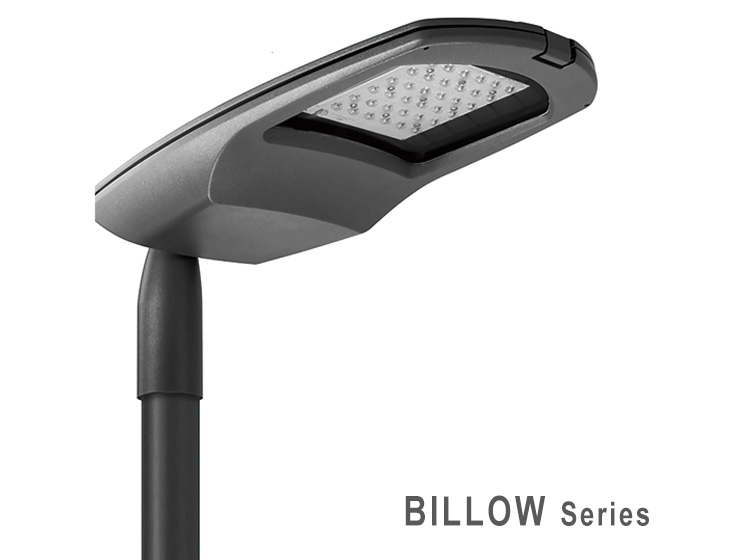

BILLOWis be for a city road. She is energy-saving lamp products which comply with road lighting standards.Simple & Mode design with streamlined appearance make lamps corresponding with the city.Focus in every detail, simply clever was motto for our team.Ip66 protection with durable electrostatic spray which apply to harsh outdoor applicationsTool free for open, reasonable layout design brings simple maintenance.

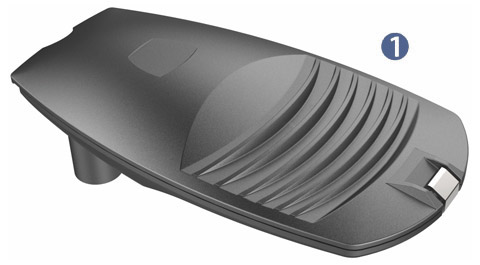

1.Arc shape cooling guide design result in effective heat dissipation and excellent guide dust removal ability.

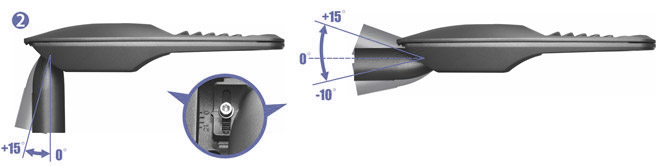

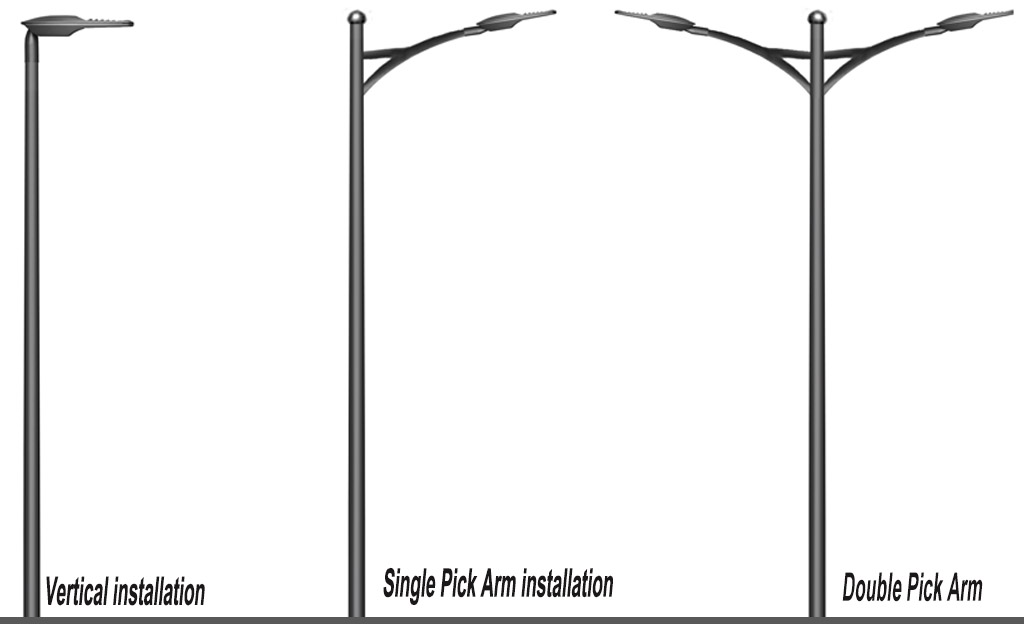

2.Tilt angle is 0 °,+5°,+10°,+15°for Vertical installation and -10°,-5°,0°,+5°,+10°,+15°for Horizontal installation.

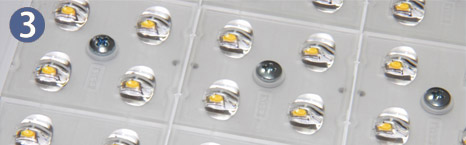

3.Combined optical Lens, a wide variety of optics feature apply to kinds of road lighting requirements.

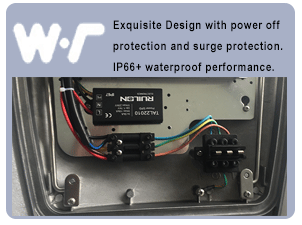

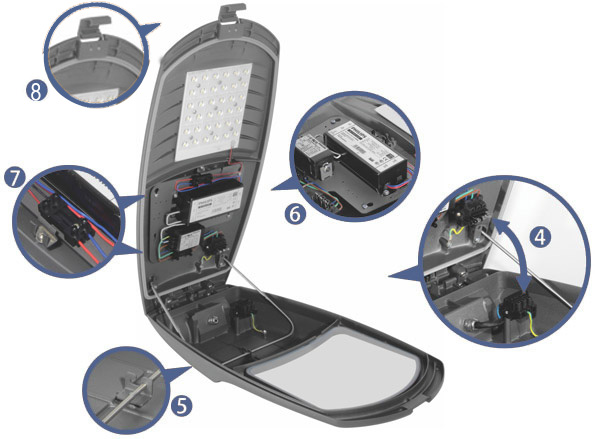

4.Power-off protection socket, safe and reliable.
5.Non-slip open bracket, when in maintenance is not easy to fold or fade.

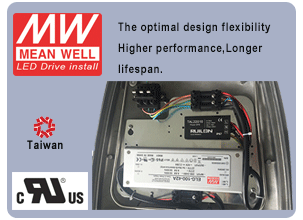

6.Simple operation for driver replace and maintenance, electrical panel is removable.
7.Pluggable connector.
8.One Key open, free tools. Use HIGH STRENGTH ALUMINUM ALLOY materials, Permanent life.
Parameter:

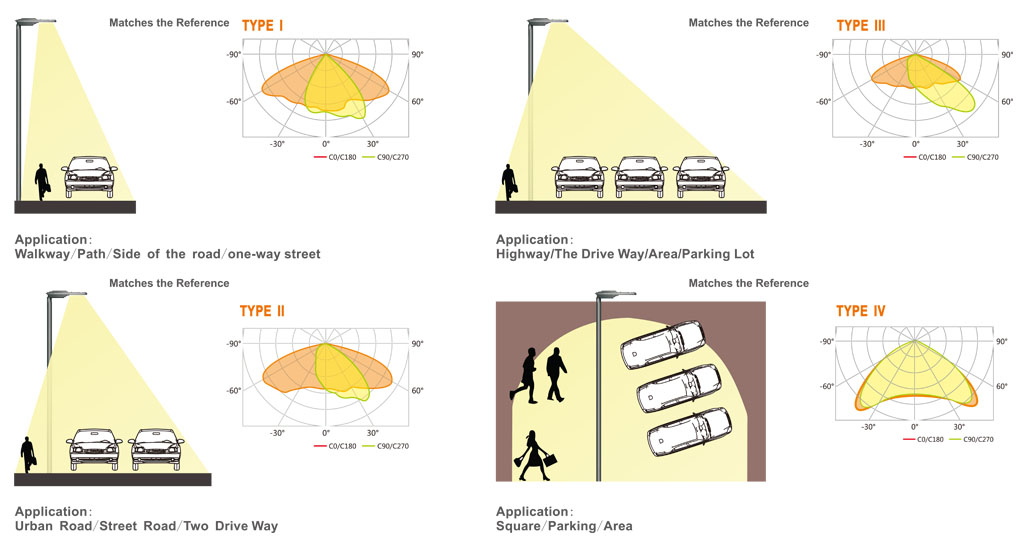

Type I（80x150°）/ Type II (60x155°)
Type III ( 45x155°) / Type IV (90°)
|
Artical code
|
LED Quantities
|
Beam Angle
|
Power
|
Lumen Outpot
|
Input Voltage
|

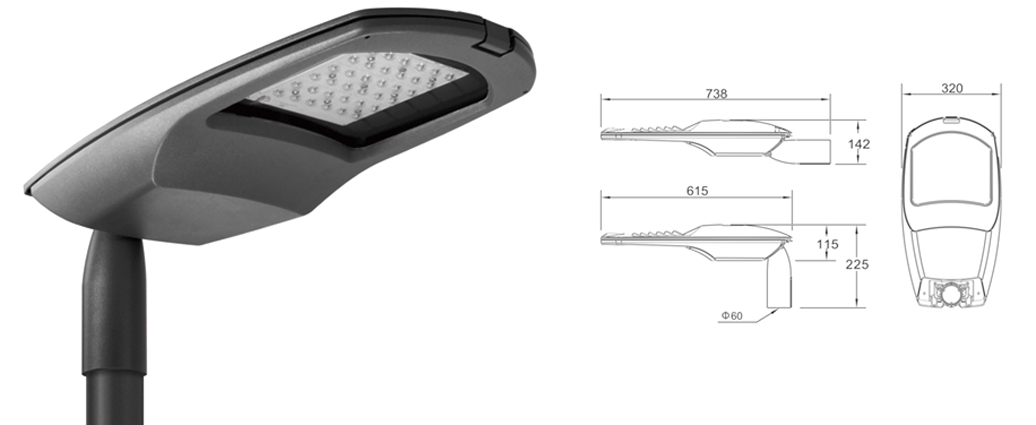

Install Dia.
|
Control Method
|
|
L05A-024-P40
|
24pcs
|
Type I（80x150°）/ Type II (60x155°) Type III ( 45x155°) / Type IV (90°) |
40W
|
4433lm
|
AC100-277V 50/60Hz
|
Ø60mm
|
On/Off
|
|
Artical code
|
LED Quantities
|
Beam Angle
|
Power
|
Lumen Outpot
|
Input Voltage
|
Install Dia.
|
Control Method
|
|
L05B-024-P60
|
24pcs
|
Type I（80x150°）/ Type II (60x155°) Type III ( 45x155°) / Type IV (90°) |
60W
|
6196lm
|
AC100-277V 50/60Hz
|
Ø60mm
|
On/Off
|
|
Artical code
|
LED Quantities
|
Beam Angle
|
Power
|
Lumen Outpot
|
Input Voltage
|
Install Dia.
|
Control Method
|
|
L05B-036-P80
|
36pcs
|
Type I（80x150°）/ Type II (60x155°) Type III ( 45x155°) / Type IV (90°) |
80W
|
8430lm
|
AC100-277V 50/60Hz
|
Ø60mm
|
On/Off
|
|
Artical code
|
LED Quantities
|
Beam Angle
|
Power
|
Lumen Outpot
|
Input Voltage
|
Install Dia.
|
Control Method
|
|
L05B-048-P100
|
48pcs
|
Type I（80x150°）/ Type II (60x155°) Type III ( 45x155°) / Type IV (90°) |
105W
|
10200lm
|
AC100-277V 50/60Hz
|
Ø60mm
|
On/Off
|
