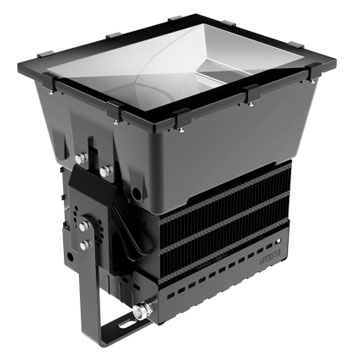

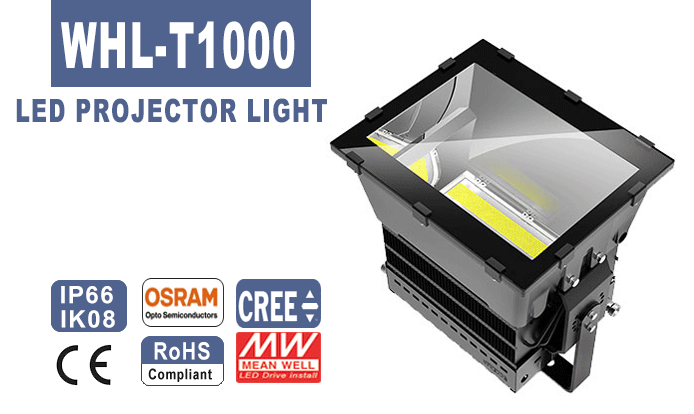

WHL-T Series
Detail:

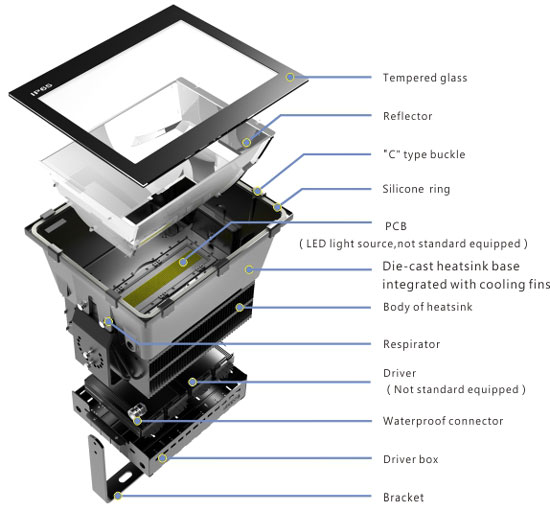

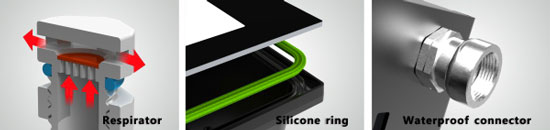

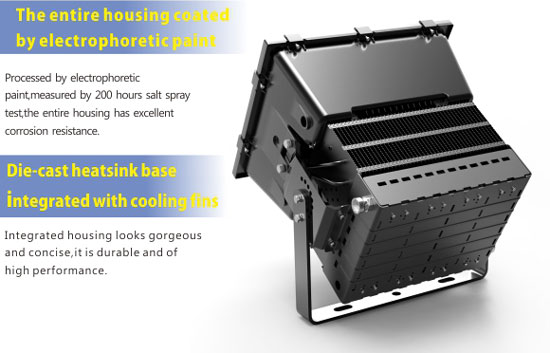

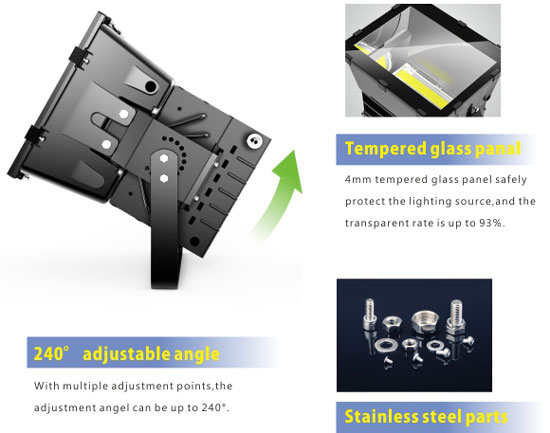

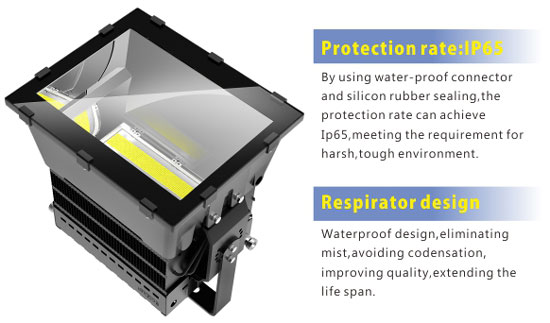

By riveting the heatpipe to the fins,the heatsink(housing) having excellent thermal performance;square reflectors:10°×90°and 50°×90°,meet the requirement of professional light distribution, and can restrain the dazzle light and spill light effectively;with the 4mm tempered glass,no need for extra shield; High pressure die-casting process made this reflector strong;It has been processed by electrophoretic paint, and passed 200 hours salt spray test. Waterproof rate:IP65.

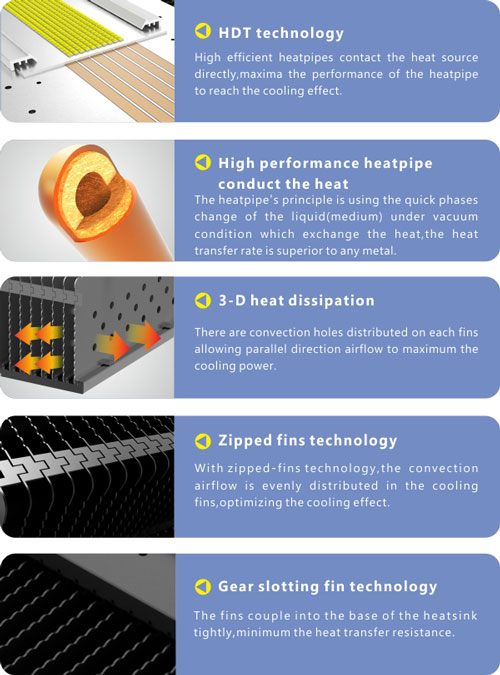

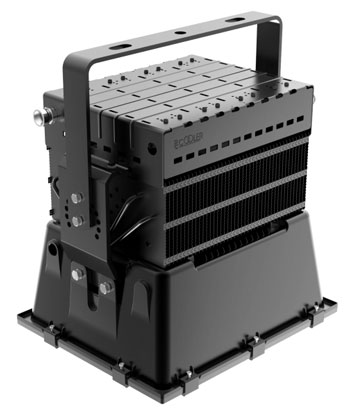

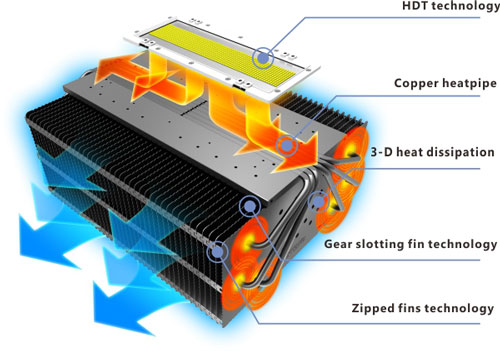

By riveting the heatpipes to the fins, make the incomparable heatsink housing. The heat from the LEDs is transformed to the fins with massive dissipating area by the 12×Ø8mm heatpipes, reducing the temperature of the LEDs rapidly and extending the lifespan.

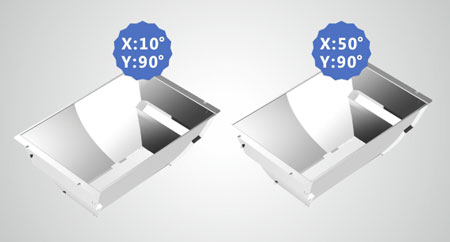

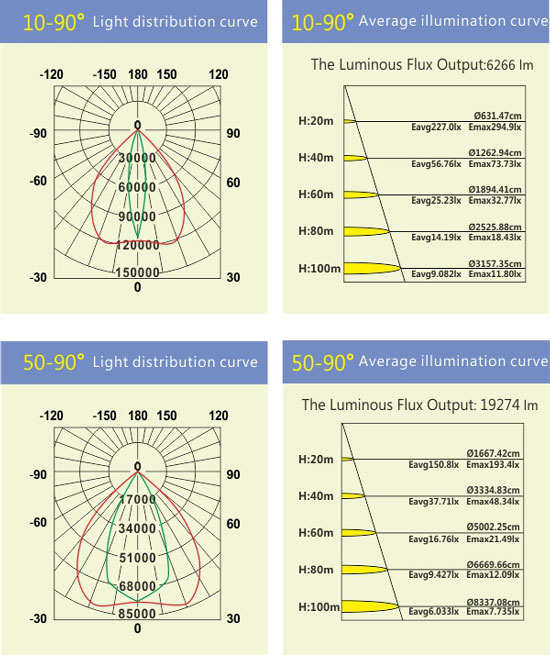

Inside high purity aluminum reflector is processed with anodization and polishing, optimize the lighting performance and restrain the dizzy light and spill light. ,square reflectors is also available:10°×90°and 50°×90°,meet the requirement of professional light distribution and can be used at different places.

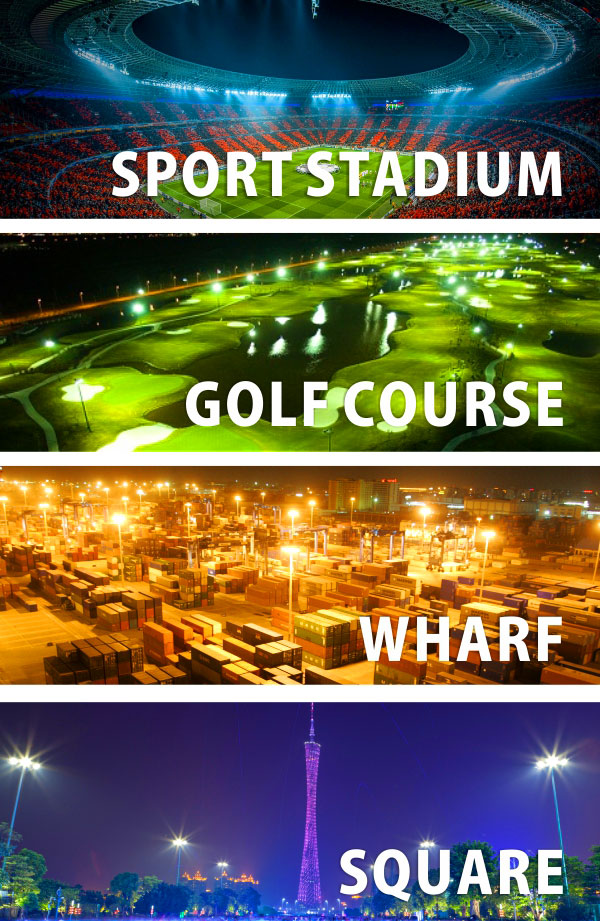

Complete lamp can replace traditional high pressure sodium lamp over 2000W. It can instant start, and has long life span, low consumption of energy, and polluting-free. It can be widely used at the stadium, golf course, wharf, square, etc.
