Application: commercial building, bridge, historic building or special facade etc
1. Reinforced aluminum alloy housing, stainless steel cover, lamp body and base with separate structure which provides nice appearance and strong structure.
2. Integrated heat radiation design efficient transfers heat to outside.

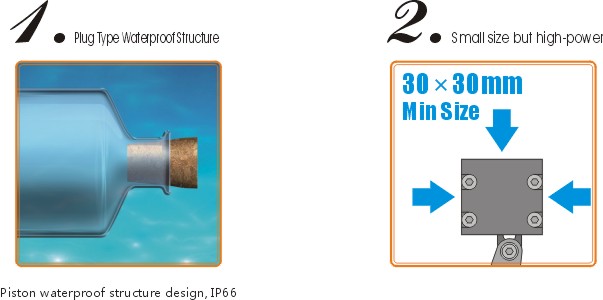

3. Piston waterproof structure design, with IP66.
4. Segregated input cable design avoids steam come into housing from cable.
5. Driver and signal part with anti-surge, anti-lightning, anti-electrode positive design, max 4KV.

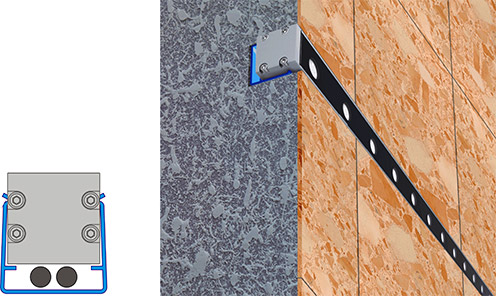

Lamp Structure

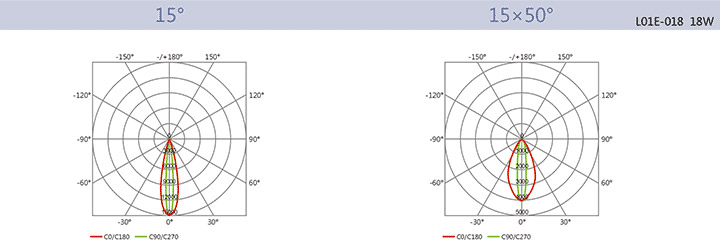

Light Distribution Curve
Specification
|
Products Code
|
WHL01E-009-0.5M-P9
|
WHL01E-012-1M-P12
|
WHL01E-012-1M-P18
|
WHL01E-012-1M-P24
|
WHL01E-012-1M-P36
|
|
LED Quantity
|
9
pcs
|
12
pcs
|
18
pcs
|
24
pcs
|
36
pcs
|
|
Fixture Size
|
L500* W30* H30mm
|
L1000*W30*H30mm
|
L1000*W30*H30mm
|
L1000*W30*H30mm
|
L1000*W30*H30mm
|
|
LED Source
|
OSRAM
|
OSRAM
|
OSRAM
|
OSRAM
|
OSRAM
|
|
Rated Power
|
9
W
|
12
W
|
18
W
|
24
W
|
36
W
|
|
Input Voltage
|
DC24V
|
DC24V
|
DC24V
|
DC24V
|
DC24V
|
|
Colour Temperature
|
5500K/4000K/3000K
|
|
Control Mode
|
Constant current
|
|
Lamp Luminous Flux
|
890lm(white)
|
1230lm(White)
|
1882lm(White)
|
2455lm(White)
|
3676lm(White)
|
|
Beam of Angle
|
15°/ 15x50°
|
|
Temp.of Working Environment
|
-35℃ to 50℃
|
-35℃ to 50℃
|
-35℃ to 50℃
|
-35℃ to 50℃
|
-35℃ to 50℃
|
|
Hud. Of Working Condition
|
10%
to 90%
|
10%
to 90%
|
10%
to 90%
|
10%
to 90%
|
10%
to 90%
|
|
Lifetime
|
>70
000 Hours
|
>70
000 Hours
|
>70
000 Hours
|
>70
000 Hours
|
>57
000 Hours
|
|
Warranty
|
3
years
|
3
years
|
3
years
|
3
years
|
3
years
|
|
IP Rating
|
IP66
|
IP66
|
IP66
|
IP66
|
IP66
|
|
IK Rating
|
IK08
|
IK08
|
IK08
|
IK08
|
IK08
|
|
Lamp Weight (Kgs)
|
1
|
1.7
|
1.8
|
1.8
|
1.9
|
|
Carton Packing Size
|
56*17*16
cm （8pc/Ctn)
|
106*17
*16 cm (8pc/Ctn)
|
|
|
|
|
Gross Weight (Kgs)
|
10
|
16
|
17
|
17
|
18
|
|
Certificate
|
CE,Rohs
|
CE,Rohs
|
CE,Rohs
|
CE,Rohs
|
CE,Rohs
|
